Device Details

Device Overview

Name/Version: ParaMorpher Remote - Save Presets and Morph 1.7
Author: GlintEye
Description: Update 1.7:

- added consecutive morphing mode.
- enter "Morph" mode, activate "C" Button
- now the Morpher Dial will morph consecutively through every Preset inbetween "From" and "To"

--------------------

Update 1.6

- unmapped knobs won't be saved into a preset anymore
- added the option to delete one knob from all presets (enter learn mode -> Blue X Button). good for situations where you already have some presets, but you want to exchange a mapped parameter. now you can clear the already existing preset data for that knob.

--------------------

Update 1.5.3

Some Fixes and Layout changes

--------------------

Update 1.5.2

- Some Initialization fixes
- Better Automation response

---------------------

Update 1.5.1

Added Button to Delete Single Presets (Activate, then Shift + Click to Delete Single Preset)

---------------------

Update 1.5

Added a little "Hidden Feature". If you switch into the Morph Tab (with the big "Morpher" Dial) and then set the "From" Value to 0, you'll get a new mode which will save whatever parameter changes happened, immedeiately into a "Preset 0" which can be instantely morphed into another Preset, designated in the "To" Box.

There are to different Modes to deal with the Reset of the Morpher Dial Position, so you can instantly morph from a new current position.

Jump Mode snaps the Morpher Dial directly back to 0 (good for endless encoders) and Takeover Mode which Only Outputs Morpher Dial Movement once it has been manually reset to 0 by hand (good for regular controller knobs).

To Reset the Morpher Dial, Midi map the "Init" Button and Fire it once you've got a setting of parameters you like to morph.

This Mode is considered to be mainly used for live purposes. The "Preset 0" state will not be saved with the Live Set.

---------------------

Update 1.1:

- Fixed an Issue with the Parameter Takeover

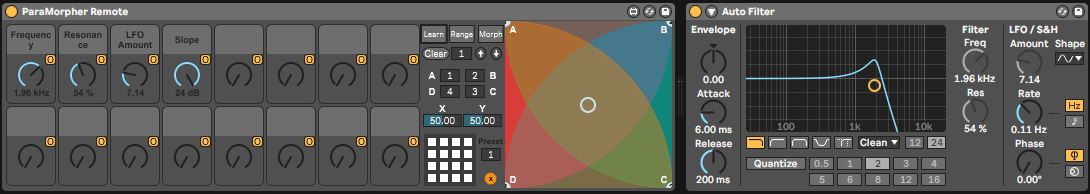

Morph 16 Parameters of your choice. Blend seamlessly between 4 different Presets of these Parameter Configurations or access curved morphing with a different curve setting for each parameter to skew your morph between 2 presets.

Shift + Click on the 4x4 Button Matrix to save a Preset

- 16 Presets
- 16 Macros
- View Original Parameter Values inside the Device [Thx to Vayner]
- Bypass any Macro from the Morphing process
- Automapping (just click in succession on the Parameters you want to map) [Thx to Vayner]
- 32 sets of mapped parameters [Thx to Vayner]
- XY Morph between 4 Presets of your choice
- Dials are taken over from Live and can be Automated from within the Device
- Customize the Range and add some Curve to your mapping

Big Thx towards Vayner https://maxforlive.com/profile/user/Vayner

This M4L device is based on Vayners "Sixteen Macros" patch

Have fun.


Device Details

Downloads: 934
Tags lfo, utility, other
Live Version Used: 11
Max Version Used: 8
Date Added: May 19 2020 08:03:41
Date Last Updated: Aug 25 2021 21:31:08
Average Rating (1) 5
Rate this device: (must be logged in to rate devices login)
Device Type: audio_device
URL (optional):
License (more info): None

Device Files

Device File: ParaMorpher Remote.amxd



Comments

like this a lot ... could u add a place to input names for the knobs?
per example/./// Filter /// etc?

also being able to add colours would be top notch.

Should be great to have a demo video about the morph section. i don't understand how it works...

doesn't seem to work anymore w Live 11

@mafgar

It still works fine for me on Live 11.

Hi when i use the non remote version and map a knob. I can turn the knob in paramorph and the mapped parameter updates. (turns with it)

However with this remote version when i map a control and turn the paramorph knob the device parameter stays locked and doesn't update?

I'm running live 11.05

Many thanks for your awesome work!

sorry ignore me, this behaviour only occurs when there is no active audio device for some reason

@seth

thx for the detailed description. so there still are issues then? i just tried ParaMorpher Remote with a device on a track and without any other device on the track. both times it worked as expected.

could you specify what you mean by "only occurs when there is no active audio device"?

"active audio device" as in deactivated vs activated or as in "there is audio material running through the device"?

Works in Live 11. To make it work, you must first assign the parameters with "Learn", then move the knobs and store some presets with positions 1 - 4, for example: SHIFT + the white cells on the 4x4 square.
Then move the joystick in the matrix and sounds will evolve.
