Device Details

Device Overview

Name/Version: XVAnalogueFilter Virtual Analogue Filter - Live 9 1.0
Author: xmonsta
Description: XVAnalogueFilter, a Free Analogue (Modelled) Filter device for Live 9 (Requires Live 9/Max 6)

XVAnalogueFilter, contains a selection of Virtual Analogue Filters, SVF (Zero delay feedback/Linear Trapezoid), Ladder (Moog), Diode Ladder (TB303, or EMS VCS 3) and Transistor Filters created using Gen DSP algorithms (Gen requires Live 9/Max6 in order to work). There are High Pass, Low Pass, Band Pass, Peak and Notch filters. A detailed explanation of each filter in the filter menu can be found in the "Credits" section of the device, along with the licenses and credits for each filter algorithm.

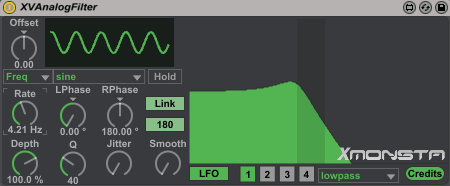

XVAnalogueFilter, is broadly based on Live's own AutoFilter interface, so those familiar with this should feel right at home. There is an LFO section (which includes manual operation), along with an Envelope section (allowing the filter envelope to be triggered by the incoming audio signal). It's possible to adjust the phase of the left and right channels (if you want 0% phase, just set the LPhase (left phase) to 180%, although the filter sounds fatter if you offset them by just a few %). You can also link the phases together and put them 180% phase offset from each other, in order to get tight timing of the LFO to sync with your track.

The device really comes alive when automating the rate of the LFO (try drawing in some automation on the Rate/Sync/NoTrpl/Trpl dials, in 4ths, 8ths or 16ths), while also automating the offset and depth dials. Also the smooth dial can be used to smooth out any fast filter transitions.

I spend a large amount of time testing my devices, so (unlike many maxforlive devices), this device should save properly with your set and you shouldn't experience bugs or errors. All possible dials/parameters are named properly and should be automatable through both session view and clip envelopes. If you do have any problems, feel free to contact me here, or on the forums of http://www.xmonsta.com/forum/home/ and I'll be happy to help.

I've had a huge amount of fun playing around with these warm sounding, squelchy filters for the last few weeks. Hope you enjoy using them as much as I do.

Cheers

Xmonsta


Device Details

Tags lfo, effect, other
Live Version Used: 9.0.6
Max Version Used: 6.1.4
Date Added: Dec 05 2013 16:11:17
Date Last Updated: Jul 29 2014 17:54:17
Device Type: audio_device
Download URL (report link) http://www.xmonsta.com/product/xv-analogue-filter/
License (more info): AttributionNonCommercialNoDerivatives


Comments

Nice summary of he current filter status quo, thanks!

Awesomeness!!! Thanks!!

Very nice device. Different sound flavor from stock filter.

Seems that the lfo while syncing to host tempo does not not resync to play position it seems to be free running. Only solution to this is to use envleopes on offset and cutoff at the same time. Would be nice to see this fixed but workaround is more than acceptable for this great sound.

Thanks.

Hey Specialkay,

Thanks. The LFO is only free running with the "Freq" setting (since the rate is free in Hz, same as AutoFilter), it does resync to host tempo play position, when using the settings "Sync, Trpl, NoTrpl". If you set up a 4 bar loop with any of these settings, the LFO will start at exactly the same position every time you start the loop and throughout the loop. Try also changing the LPhase to 180% to ensure the left and right channels are playing the same LFO settings, so you can hear the synced LFO more clearly (although not necessary).


Ahhh. Thanks for clearing that up! Any chance a future update could include a sidechain option?

Like auto filter selector.

Hey Specialykay,

You can create your own sidechain using the "Envelope Follower" device that comes with the Max For Live Essentials pack.

It's not possible to get a sidechain into this device, because m4l devices cant get audio (for sidechaining) from other tracks (only the track the device resides on). Hence the need for a second device to capture the audio from another track and send the values to another device.

Yes I did try that but thinking about it now I loaded onto the same track I wanted to effect...doh! So I should be able to load onto the sidechain track and map to filter track! Thanks for the head check!

ok is it just me or
filter 1 is mono
and there's no controls for manual freq modulation?

Hey piguz, none of the filters should me mono (they all have stereo inputs for left and right channel) . The default setting is Lphase set to 0 and Rphase set to 180 (same as autofilter default setting). You should be able to hear clearly that the LFO filter is moving at exactly the opposite from the Left and Right speakers (ie, if you are using low pass, the left speaker will be at lowest cutoff, while the right speaker will be highest/opposite). It is possible to make the filter mono, by turning the Lphase to 180, both filters will follow the exact same LFO setting. Sometimes it sounds nice to offset them just slightly from one another (Lphase 178 and Rphase 180), to create a slight delay between left and right channels (sounds fatter)

Manual freq modulation is in the "Man" setting in the dropdown. You can select, Freq (which is free moving), Sync (syncs to ableton) Notrpl (no triplets), Trpl (triplets) and Man (manual).

cool!! thx!

I'm planning to give MIDI-input to a nice filter. Set midi channel is perhaps the best option? The point is ofc to use the note-on/offs and the velocity etc to make the filter behave like it was part of any synth/sampler. What do you think of this idea?

Hey Happytosh,

There are plenty of devices that can help you do this already.

For instance, we have MidiNoteControlParameters - http://www.xmonsta.com/product/midi-note-control-parameters/

You could hook this up?

MidiNoteControlParameters does Velocity and also Note On/Off

Thanks I will check that out!
I think maybe there is one device that comes with Live too :)
