Overview

Name | Version: MIDI Router and Receiver - XS 1.0
Author: TBTAHG
Device Type: MIDI Effect
Description: This is a small 16 track MIDI utility device which allows you to connect MIDI input devices to MIDI instruments, giving you the possibility to change routings on the fly without having your Live set freezing for a few seconds or losing sync with external hardware and other problems like that.

It is basically a miniature version of this device here (-> http://www.maxforlive.com/library/device/3003/live-midi-router-and-receiver ), designed to save some precious screen-estate in comparison with the original device.

How to use this device:

- Create a dedicated MIDI channel for each controller (set it's 'MIDI From' to the controller in question, set 'MIDI To' to 'No output' + arm the track) + drop an instance of the 'MIDI_Router' device on it
- Create as much instrument tracks as you need (set the 'MIDI From' to 'No Input') + drop an instance of the 'MIDI_Receiver' device on every single one of them.

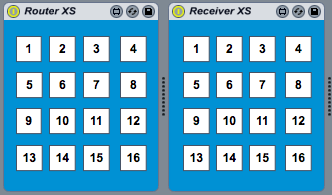

- You are now able to assign a MIDI controller to an instrument by making a one-on-one connection between a router and a receiver by selecting the same track number on both the router and receiver. (In this version of the device, there is an upper limit of either 16 tracks or 16 MIDI controllers to be used at once.)

P.S.: As the device actually consists of two devices (Router and Receiver), the download is a .zip-file, just containing the two .amxd- files.

Details

Live Version Used: 9.1.6
Max Version Used: 6.1.6
Date Added: May 16 2015 05:55:23
Date Last Updated: Nov 06 2015 12:33:35
Downloads: 1778
ⓘ License: AttributionNonCommercialShareAlike
Average Rating (3)

Log in to rate this device

 5

Files

Device File: MIDI Routing XS.zip



Comments

Fantastic tool, very helpful. Will credit when I accomplish something.
Posted on December 17 2015 by evns | Report Issue
thanks so much for this, preparing for a live show and this is really saving my bacon
Posted on July 30 2016 by herrprof | Report Issue
Nice device! I'm curious, does this implement routing with Zero Latency like this other similar device does?

http://www.maxforlive.com/library/device/3626/zero-latency-midi-router-sender

That one seems to be more of a general router, while this one is specific to MIDI controllers. Is that correct?
Posted on February 27 2017 by itsBREX | Report Issue
This is a really nice device. I do have an issue with it, though. When I start ableton, if I do not have my audio device connected (showing no output on the upper right), the midi channels I have configured on the router XS and Receiver XS are all unselected. The devices still work if I manually select the channels.
In order to fix it, I have to first, connect the audio device and select it, and then restart ableton. Once Ableton loads again, all my preselected channels show up on both the router and receiver devices.
Anybody knows what could be causing this behavior? It is annoying because when I move from home to church to perform I always have to do this to connect the new hardware and get all my midi routings configuration back.
Posted on November 22 2018 by hjhaveri | Report Issue
Im a new user of max4live and downloaded your device. Looks great. Now im trying to adjust it to my needs. Im looking for a divice that routes four fixed midi numbers from a drumpad(KAT) to four adjustabel midi numbers in a second computer with resolume. Id like to trigger different video's in every scene in Ableton with the drum pad. Can this be done by the router? Im using ableton standard 9..
Posted on March 06 2019 by Momeholandaise | Report Issue
How do we pull this up through Ableton once its installed?
Posted on March 24 2019 by Yuptastic | Report Issue
