Device Details

Device Overview

Name/Version: SRR MIDI 6.0
Author: steffenkrebber
Description: sinusoidal run rhythm

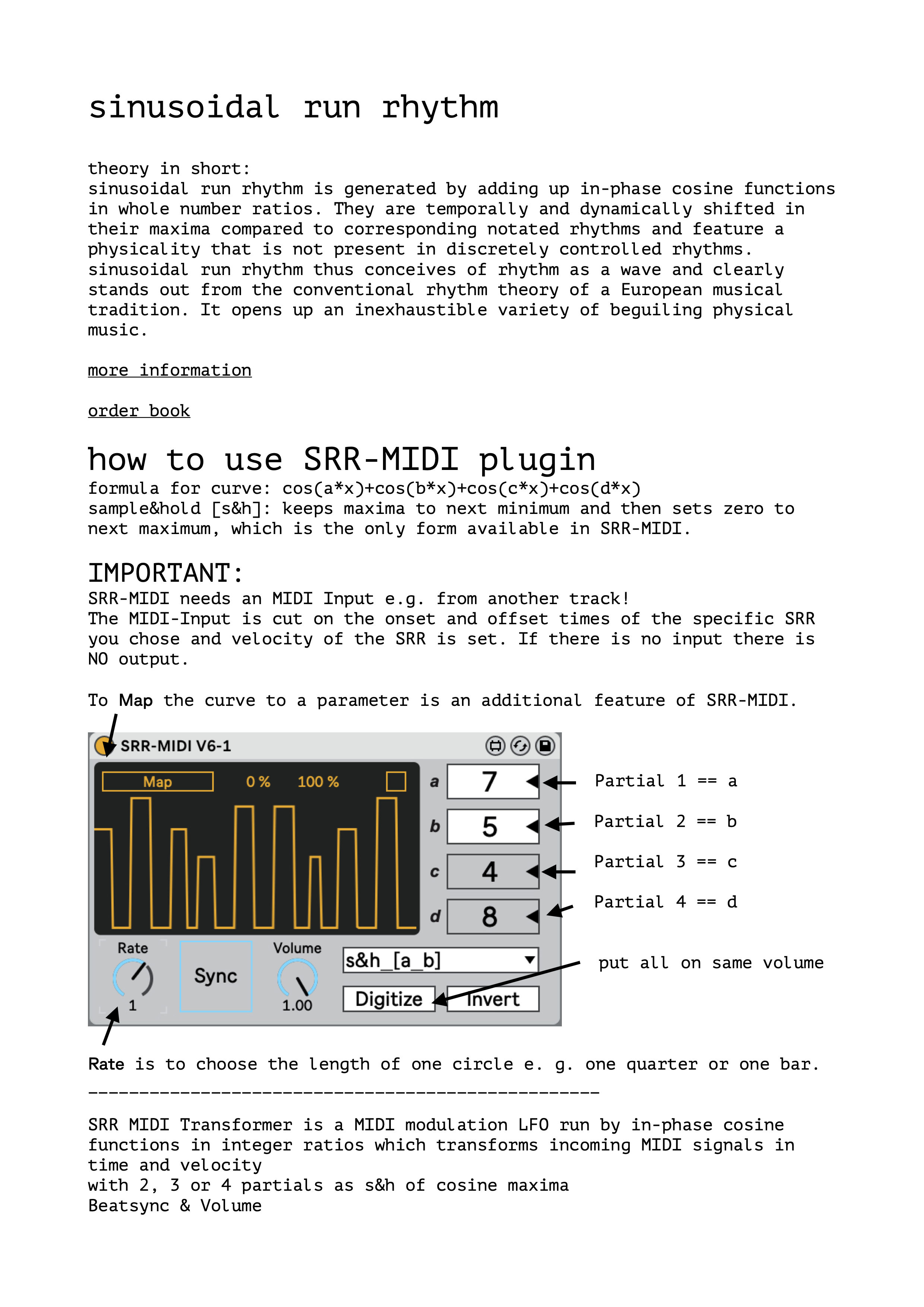

If one adds up in-phase cosine functions in integer ratios – which are pure intervals in the audible range – these entail special characteristics in the form of rhythms: they are temporally shifted in their maxima compared to corresponding notated, discrete rhythms, and are thereby something fundamentally different from polyrhythms in the same ratio a:b. In addition, the rhythms have volume weightings between their maxima.

SRR MIDI Transformer is a parameter modulation LFO run by in-phase cosine functions in integer ratios
with 2, 3 or 4 partials as s&h of cosine maxima
transforms incoming MIDI signals in time and velocity
Beatsync & Volume

Make sure to visit for further information on this project and visual examples.

Device Details

Downloads: 517
Tags drum, lfo, glitch, other, hardware
Live Version Used: 11.2.11
Max Version Used: 8.5.3
Date Added: Aug 11 2023 08:19:33
Date Last Updated: Aug 22 2023 09:06:42
Average Rating (2) 5
Rate this device: (must be logged in to rate devices login)
Device Type: midi_device
URL (optional):
License (more info): AttributionNonCommercialShareAlike

Device Files

Device File: SRR-MIDI V6.amxd


I really like these SRR devices, very interesting! Thank you :)

well this looks fantastic! Thanks for sharing and also providing the additional technical data and diagrams. I can't say I understand a lot of it but it makes it more fun while playing with the device to have an idea of what's going on.

wonderful work, very useful and inspiring!

Vielen lieben Dank
