Device Details

Device Overview

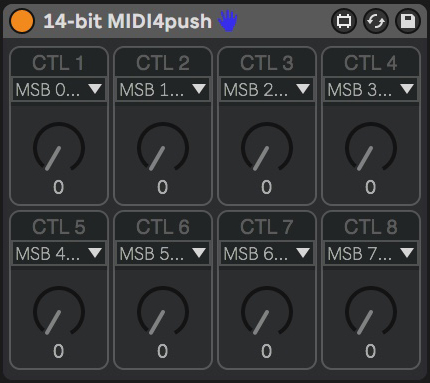

Name/Version: 14-bit MIDI4Push 0.1
Author: Sten
Description: Inspired by CC map8. With 14-bit MIDI4Push you can send 14-bit MIDI Control Change messages that can be mapped to the 8 encoders of your Push controller to control external hardware.

14-bit CC messages are generated by combining two standard 7-bit MIDI CC messages to enhance the range of possible values from (0-127) to (0-16383).

Used Control Change messages range from 0-31 (MSB) to 32-63 (LSB), thus giving you 32 channels of high resolution MIDI control.

Just drop it on a MIDI track and pick a MIDI-to destination.

Device Details

Downloads: 509
Tags utility, hardware, beta, push
Live Version Used: 11.0.12
Max Version Used: 8.1.11
Date Added: Jan 21 2022 18:31:01
Date Last Updated: Mar 03 2022 15:06:01
Average Rating -n/a-
Rate this device: (must be logged in to rate devices login)
Device Type: midi_device
URL (optional):
License (more info): AttributionNonCommercialShareAlike

Device Files

Device File: 14-bit


Cool! It's will work either with other devices with encoders?

I haven?t tested it with other hardware but in theory you can map anything to the live.dial objects.

thanks for the device! Have you thought about expanding it to also support NRPN? Maybe switchable with 14bit CC?

Hey hey, This would be very handy but the download is 0bytes. Could you check?

Thank you wimvandenborre for pointing this out. The problem should be solved now. Can you please report back if the patcher file is now working for you?

Yes, it is working now, months later now I can't remember why I needed it, I was actually looking to send for sysex messages I think :) Thank you for the correction, I'm sure I'll find good use of it!


Does this map on in Push's User Mode?

*only in*

I designed to automatically map to the encoders when selected in normal mode.
