Device Details

Device Overview

Name/Version: FPB 4 Push Drum Sequencer 1.2
Author: fingerspushbuttons
Description: 4 Push Drum Sequencer V.1.2
By Fingers Push Buttons
The 4 Push Drum Sequencer grabs the first four available Push devices from a live set and combines them to make a single 32 step drum sequencer.

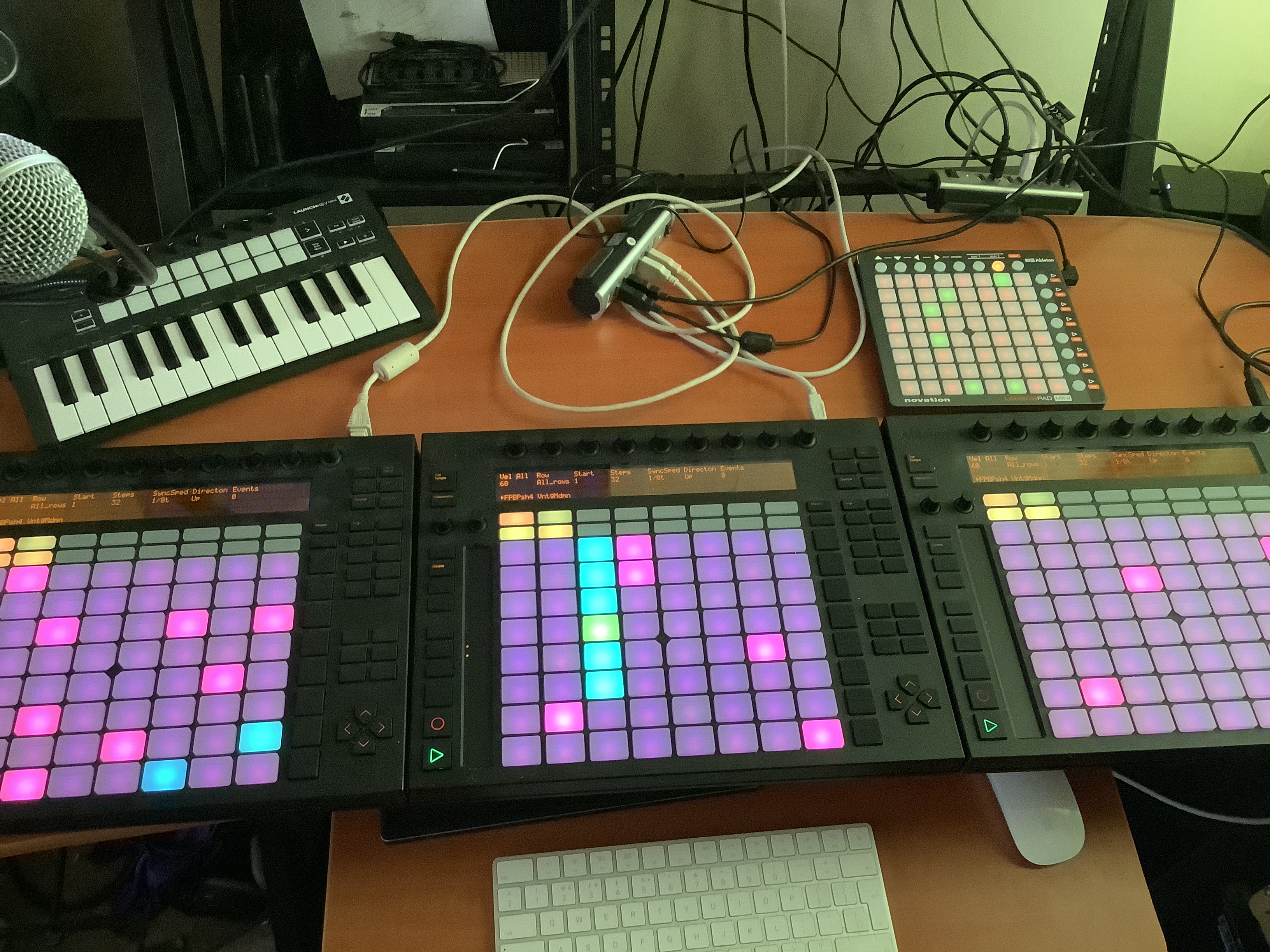

Fun to use with 0 - 4 Push and LaunchPad* controllers.

*Tested with MK1 and MK2 Launchpads and LP Mini.

Once activated each row of the grids makes a MIDI note value and each column across the 4 controllers represents a step.

The MIDI notes represented are independently settable and also come with 5 presets.

Requires Live 10 & Max for Live 8


Version 1.2 adds the following features:

a. Note value and velocity editing per row with 5 presets

b. Loop length and beat start editing for the whole pattern and per row.

c. Sync speed that can be set for the whole patten and individually set per row.

d. Loop direction that can be applied to the whole pattern and independently set per row.

e. Euclidean events that can be added in to each row.

f. A pattern lock button, which when activated will only allow changes to the pattern for as long as they are held on the controller grids.

g. Nudge control that can nudge the whole pattern or one line of the pattern one place to the left or the right.

h. Auto_Adder and Auto_Deleter that randomly add or delete active steps every time the countdown clock reaches zero, the countdown is settable between 1 and 32 beats.

i. A reset button that resets every line of the pattern to its start position.

j. Fixed colour schemes for Push and Launchpad making it easier to use a Mix of the devices.

k. Improved controls on Push allowing row selection with the up down arrow and nudge left and nudge right with the left and right arrows as well as 'pattern clear' using the delete button.

Rested features in version 1.2

a. User defined colour schemes.

b. Independent BPM and midi note step trigger.

Watch the demo here

Device Details

Tags drum, sequencer, hardware, push
Live Version Used: 10.0.1
Max Version Used: 8.
Date Added: Feb 10 2020 20:08:13
Date Last Updated: Jun 24 2020 20:07:21
Device Type: midi_device
Download URL (report link)
License (more info): Commercial


Does it matter if it's the original Push or the Push 2? Can the Pushes and the Launchpads be mixed in any way?

Hi stromkraft, yes it works with push one and push two. It also by accident works with older launchpad units if they are in user mode 2. The device can be set up with the hardware in any order of your choosing and you can use between 1 and 4 hardware devices.

The only real pitfall with using a mix of launch pad and push units is they use different colour values so for now you?ll need to compromise on a set that works well on both. I?m working on an update that should improve this, and add better note selection to each row.
