Device Details

Device Overview

Name/Version: MultiLFO 1.6.2
Author: altarofwisdom

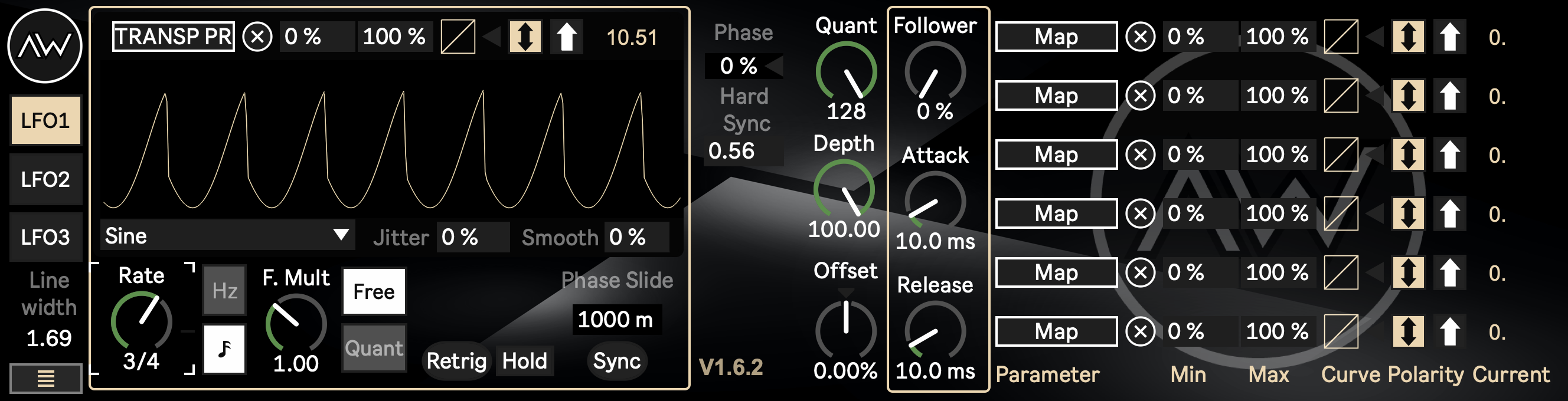

Description: MultiLFO is a strongly boosted descendent of Live’s own LFO device, adding many missing features of it, more shapes, and embedding 3 different LFOs in just one device for a more compact  workflow.

 Here is a (not so) brief list of what has been added or improved compared to LFO:

-  NEW: 3 independent LFOS instead of one, with a selector to display one of them.

-   NEW: the LFO can modulate itself, for example LFO2 can control LFO1 speed, for weird shapes to happen

-   BOOSTED: Sine LFO has a hard sync parameter to allow interrupting the sine in the middle of a period or on the contrary fit more sines in one period (decimal values)

-   BOOSTED: Added a pulse width to the square LFO to allow shorter or longer steps at max value

 -   NEW: Envelope follower to trigger the LFO based on input volume (with a configurable Attack and Release). Follower can occur from zero or from middle value

-   NEW : "drunk" LFO modes (random values but without big jumps, only small movements), when using follower, drunk can be set to follow envelope from middle value or from zero (the default value when no sound is coming into the LFO)

 -   NEW: Gaussian drunk mode, that tends to do regular small jumps and sparse big ones, with a configurable amplitude

 -   NEW: Specific random mode, that allows for smooth morph between a complete random (where all values can happen equally) to a gaussian random (where middle values have more chance to occur and extreme values little chance)

 -   NEW: LFO rate multiplier (to achieve higher rates than the original 40 Hz. Alas, on parameter control we still are limited as the controls don't work at audio rate, so no FM like modulation is possible).

-  NEW: Per parameter transformation curve (from logarithmic to exponential) instead of linear only

-   BOOSTED: binary mode allows to select how often 1 values get triggered, from 0 (never) to 100 (always at 1)

-   BOOSTED: LFO displayed graph now takes into account the min, max and curve values of the first target parameter instead of the original LFO

-  BOOSTED: LFO display lines width can be tweaked

-   BOOSTED: The smoothing now goes from 0 to a full period of the LFO (it was between 0 and 200ms whatever the rate)

-  NEW : The LFO, when in sync mode will ALWAYS tend to get back to being synced, without jumping phase as the original LFO does (especially useful for modulating filter jumps speed but being able to fall back to in sync on filter movements). The phase slide parameter control how fast this resync happens. The SYNC button when pressed forces instant sync of the LFO to quantized value.

-   NEW: Quantizer to downsample output values down to binary

Managed to keep MultiLFO in a constrained CPU usage in face of all the features it provides, so it takes around 3 times a normal LFO, meaning no overhead from these features ;-)

Full tutorial here:


Device Details

Tags lfo
Live Version Used: 11.1
Max Version Used: 8.3.0
Date Added: Feb 08 2023 15:54:19
Date Last Updated: Not updated yet
Device Type: audio_device
Download URL (report link)
License (more info): Commercial
