Device Details

Device Overview

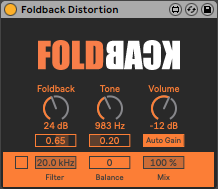

Name/Version: Foldback Distortion 1.0
Author: Panosla
Description: Foldback (Demo) is kind of self-explanatory. It is an m4l foldback-distortion audio device. Increasing a signal past the 0dBfs mark will cause clipping. The parts that exceed that dynamic range, will be literally clipped and what instead will remain is a flat line. Foldback distortion behaves differently. The part of the signal that exceeds that dynamic range, instead of getting clipped is folded back onto itself.

The closest example to that is as if the waveform is drawn on a piece of paper, and then is folded back onto itself.

The results are heavily dependent on the input material and level, however, drive it too far and some dissonant partials will emerge.

- Foldback parameter - Control the amount of distortion
- LPF filter on the input signal path
- Autogain - A feature that compensates for the level increase when the foldback distortion is -increased.
- Mix - Blend together the input signal and the output signal.
- Balance - Balance the level differences between the input and output. This is particularly useful when you want to automate the mix parameter.
- Crossover/Filter - Use the crossover mode to separate the low frequencies of the input signal and the high frequencies of the output signal. This way you ensure that there will not be any phase issues when the dry signal is mixed with the distorted signal. Especially useful when used with basses.


Device Details

Downloads: 526
Tags effect
Live Version Used: 10.1.18
Max Version Used: 8.1.5
Date Added: Apr 13 2021 20:34:04
Date Last Updated: Apr 13 2021 20:35:04
Average Rating -n/a-
Rate this device: (must be logged in to rate devices login)
Device Type: audio_device
URL (optional):
License (more info): None

Device Files

Device File: Foldback Demo.amxd
