Device Details

Device Overview

Name/Version: M4LScope 1.8
Author: ShelLuser

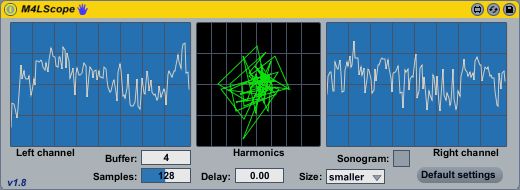

Description: One of the first patches I created and something I'm still using on almost a daily basis today. It's a rather simple but in my opinion also very useful patch. And it does what you see here; provides a scope screen for both channels which will show you the current waveform.

You can select the buffer being used (which will give you more waveforms). Next the sample rate and draw delay can be configured which makes it easier to show specific waveforms. Finally you can also chose from 3 different presets for signal sizes; normal, smaller or bigger.

As of version 1.8 it also supports sonograms; you can click the 'Sonogram' option after which a new window will be displayed.

This has become somewhat work in progress; more updates are bound to follow.


Device Details

Downloads: 1281
Tags utility
Live Version Used: 8.3.3
Max Version Used: 5.1.9
Date Added: Oct 24 2010 17:11:52
Date Last Updated: Nov 03 2015 20:57:27
Average Rating (1) 5
Rate this device: (must be logged in to rate devices login)
Device Type: audio_device
URL (optional): http://synthfan.catslair.org/downloads/m4l-patches/
License (more info): None

Device Files

Device File: M4LScope.amxd
