Device Details

Overview

Name \| Version:	ESX8CV Track Helper Mac 1.0
Author:	bhenry1790
Device Type:	Audio Effect

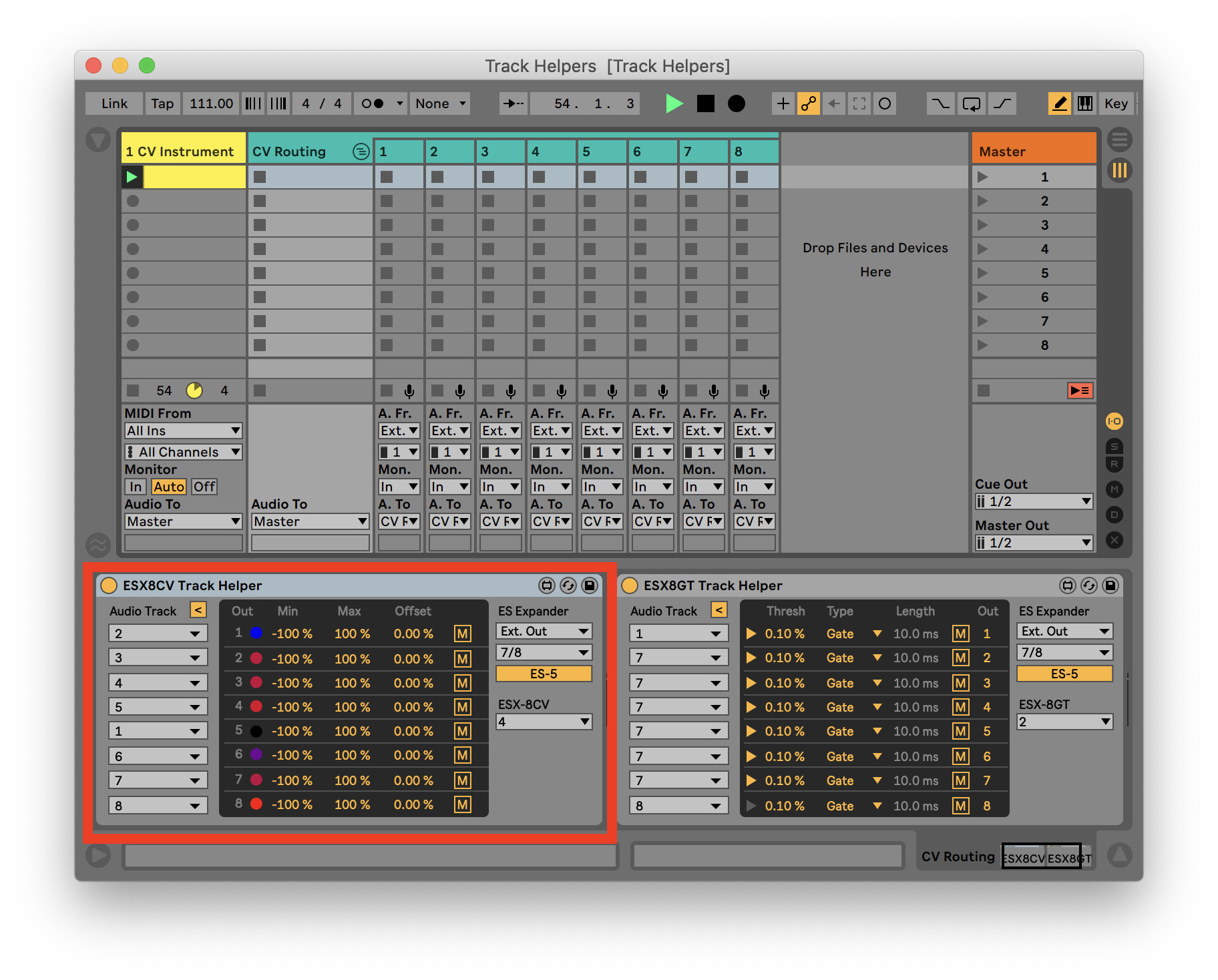

Description:	Apple Silicon compatible Requires Expert Sleepers ES-5 & ESX-8CV expanders. Use this device with standard Ableton CV Tools to send CV out via ESX-8CV. Send output from Ableton CV Tools to Audio Tracks in Live, then use the ESX-8CV Track Helper to encode the signal for your ESX-8CV expander. A little "plumbing" advice: Create a group of 8 audio tracks. Set the new Audio Tracks to NO INPUT, set monitoring ON. Drop the ESX8CV Track Helper on the group's master. Choose your ES-5 stereo pair, then your ESX-8CV header. Choose your 8 audio tracks in the ESX-8CV Track Helper. Now any signal in your audio channels will output to the corresponding jacks! Let me know if you have any troubles and I'll make a step-by-step video. You'll need to add the es*encoder~ externals to Max for these to work. https://www.expert-sleepers.co.uk/downloads.html Mac location for externals: Users/Shared/Max 8/Library/

Details

Live Version Used:	12.0.5
Max Version Used:	8.6.2
Date Added:	Jun 28 2024 09:51:26
Date Last Updated:	No Updates
Downloads:	70
ⓘ License:	None
Average Rating Log in to rate this device	-n/a-

Files

Device File:	ESX8CV Track Helper_M1.amxd

Comments

Have you any idea if this would work with the ES8

Posted on October 24 2024 by SOUPSOUNDS | Report Issue

In short yes it will work with the ES8

It requires an ES-5 and an ESX-8CV

The ES-5 is an expansion module for the Expert Sleepers ES-3 Lightpipe/CV Interface, ES-8 USB Audio Interface, ES-9 USB Audio Interface, or ES-10 ADAT Interface

The ESX-8CV is an expansion module for the ES-4, ES-40 or ES-5, adding eight CV outputs from one expansion header

Posted on October 24 2024 by bhenry1790 | Report Issue
