Device Details
Device Overview
| Name/Version: | VOC-201 2.0 |  |
| Author: | OspreyInstruments | |

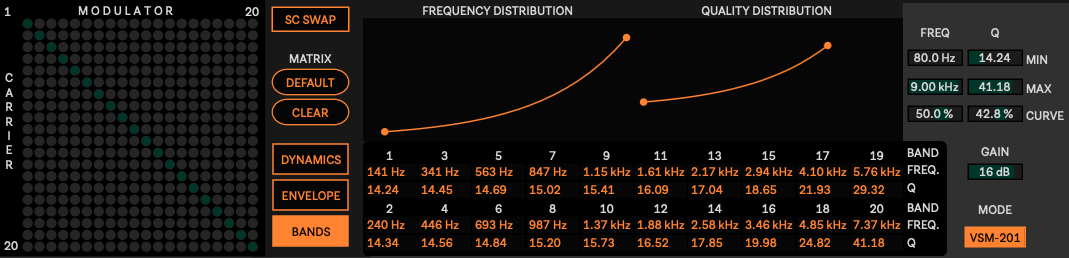

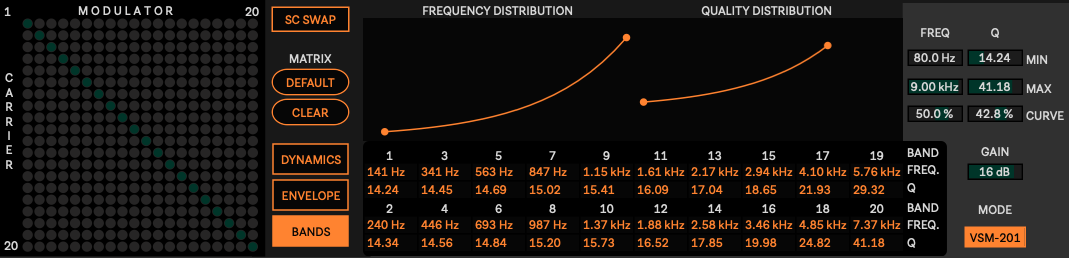

| Description: | Here is a much-needed update to the VOC-201 vocoder released last year. I completely changed much of the fundamental architecture of the original. For instance, rather than rolling my own crossover filters using biquads, I migrated to using resonant bandpass filters. This gives a lot more flexibility, and stability when changing the frequency bands after the fact. The bandwidth can now be controlled by "Q" parameters. The frequency (in CURVE mode) and Q range are now defined by a function by selecting the endpoints and curve parameters. This ranges your filter distribution and is likely the most powerful shaping method in this device. In VSM-201 mode, the bands revert to the frequencies used by the original hardware, but the Q still follows its curve function. The band gain parameter may be necessary/desirable to adjust when altering the Q. Taking cues from my additive synth, Partials, and my drum synth, Clapper, I have included band-level (multi-slider) controls for many aspects of the vocoder. I was never totally satisfied with the dynamics/preprocessing section (gate, compressor, emphasis EQ) on the original. I ditched the time-based compressor in favour of hyperbolic tangent (tanh()) functions, which can be easily implemented on a per-band level. This still compresses (saturates), but ignores timing envelopes, which makes it a bit more forgiving when it is implemented this way. The Slew Rate Limiter (attack envelope follower) and Silence Bridging (release envelope) are also both implemented at a band level. The Voiced/Unvoiced detection engine was also rebuilt from scratch. Not only does it perform better (functionally, not CPU-wise haha), but it has also been opened up with a slew of tunable controls. The comparator sliders, for instance, let you develop the V/UV mix, by scaling how much white noise and carrier signal you'd like for both the unvoiced and voiced modes. The V/UV detection balance should can also be tweaked, although previously calibrated it to switch correctly between consonants and vowels when its around 50% on my voice. The matrix remains, so wild cross-modulation schemes are possible (and encouraged!). I'd also implore you to open up the device if you are curious how it all works. I tried to make the topography as hierarchal and orderly as possible on the primary signal path, so it should be fairly easy to understand :) |
Device Details
| Tags | effect |
| Live Version Used: | 10.1.18 |
| Max Version Used: | 8.1.5 |
| Date Added: | Apr 09 2023 01:34:10 |
| Date Last Updated: | Not updated yet |
| Device Type: | audio_device |
| Download URL (report link) | https://ko-fi.com/s/7eeef08ee5 |
| License (more info): | None |
Comments
| i can't get any sound out of this. Live 11.1.5 , macos. would apprec any help ! |
Posted on November 02 2023 by hoolig4n (report) |
