Device Details


Overview

Name | Version: mwm.Trigger Notes 0.2
Author: MusicWithMachines
Device Type: MIDI Effect
Description: Turn any modulation into Midi Notes in four different ways.

Functions from top left to bottom right:

ON: Lets the incoming modulation through.
UPWARDS: Triggers a note at zero crossing when control signal is increasing.
DOWNWARDS: Triggers note at zero crossing when control signal is decreasing.
DURATION (10-1000ms), PITCH, VELOCITY: Sets outgoing note parameters triggered by DOWNWARDS and UPWARDS.
MAP THIS: Map the control signal to this dial.
LEDs on the left and right turn yellow as long as Midi notes from UPWARDS and DOWNWARDS are on.
POSITIVE: Plays a note as long as the control signal is above the centre line.
POSITIVE LED: Indicates a note is triggered. If POSITIVE is switched off while a note is playing you create a sustained note and the LED stays yellow. Click on the LED to turn off the sustained note.
POSITIVE PITCH: Set the pitch of the POSITIVE note.
POSITIVE VELOCITY: Set the velocity of the POSITIVE note.
NEGATIVE: Plays a note as long as the control signal is below the centre line.
NEGATIVE LED: Indicates a note is triggered. If NEGATIVE is switched off while a note is playing you create a sustained note and the LED stays yellow. Click on the LED to turn off the sustained note.
NEGATIVE PITCH: Set the pitch of the NEGATIVE note.
NEGATIVE VELOCITY: Set the velocity of the NEGATIVE note.

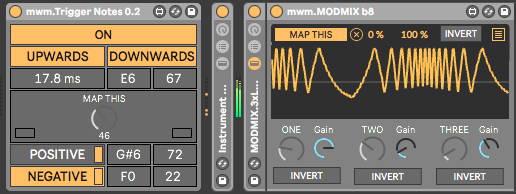

To record the outgoing MIDI notes grab them on a separate MIDI track (see screenshot).


Demo video:
https://www.facebook.com/musicwithmachines.org/posts/10159511709152293

Details

Live Version Used: 10.0.1
Max Version Used: 8.1.0
Date Added: Oct 06 2019 00:35:12
Date Last Updated: Sep 05 2021 21:42:59
Downloads: 751
License: None
Average Rating (1)

Log in to rate this device

5

Files

Device File: mwm.Trigger Notes.amxd
