Device Details
Overview
| Name | Version: | Low pass gate 1.1 |
| Author: | Razzkazz |
| Device Type: | Audio Effect |

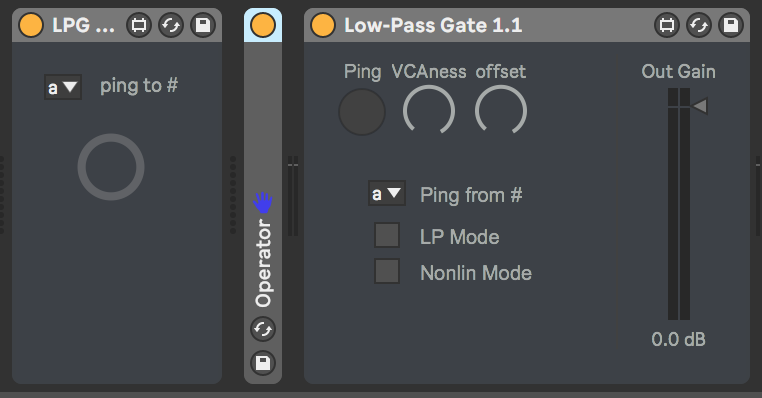

| Description: | This patch is based on research and MaxMSP code by Julian Parker and Stefano D’Angelo Paper supporting this code - A Digital Model of the Buchla Low Pass Gate http://www.acoustics.hut.fi/publications/papers/dafx13-lpg/DAFx2013-LPG.pdf Audio samples, an MXF file, and source: http://www.acoustics.hut.fi/publications/papers/dafx13-lpg/ Operates as a low pass gate or a low pass filter. Notes 2 devices are involved; 1. a MIDI device sends a ping (select destination) 2. a low pass gate receives the ping and processes the audio.(select source) Demo - https://youtu.be/Afb8RcF7rBA There is a modified version of this available here https://maxforlive.com/library/device/5139/buchla-style-low-pass-envelope-follower Updates 1.1 - refined VCAness response (thanks zip) |
Details
| Live Version Used: | 10.0.1 |
| Max Version Used: | 8.1.1 |
| Date Added: | Mar 26 2018 18:43:09 |
| Date Last Updated: | Jun 03 2020 17:25:50 |
| Downloads: | 1037 |
| ⓘ License: | AttributionShareAlike |
Average Rating
(1) Log in to rate this device |
5 |
Files
| Device File: | Low-Pass Gate 1.1.zip |
Comments
Thank you again for this very good and new audio device ,The fabulous lowpass gate ..
You coul do it even better .
1-The real device has a response who vary whith the length of the trigger signal ( classic response is for a 4mS pulse ) but shorter
pulses are useful for percussion synthesis .
2-The VCAness knob can give good sounding options but the knob response should be antiLogarythmic so more precision when closer to CW full.
3- This is a very good idea to have the LPG Send Ping separately.
It would be extremely interesting to have another LPG Send Ping who could trigger The LPG from an audio track with a dedicated trigger level knob .
zip
You coul do it even better .
1-The real device has a response who vary whith the length of the trigger signal ( classic response is for a 4mS pulse ) but shorter
pulses are useful for percussion synthesis .
2-The VCAness knob can give good sounding options but the knob response should be antiLogarythmic so more precision when closer to CW full.
3- This is a very good idea to have the LPG Send Ping separately.
It would be extremely interesting to have another LPG Send Ping who could trigger The LPG from an audio track with a dedicated trigger level knob .
zip
Posted on March 29 2018 by zip |
Report Issue
Hi Zip
Thanks for the feedback. Yes I understand it's not perfect, I have a real low pass gate myself so I know how they respond. If you are familiar with Max most of the code for this is written in gen, and not by me, it's someone else's research. I don't do gen programming so not sure I can adjust the response time, but I can look into it. With points 2 & 3 I agree. When I get some free time I will work on an update.
Thanks for the feedback. Yes I understand it's not perfect, I have a real low pass gate myself so I know how they respond. If you are familiar with Max most of the code for this is written in gen, and not by me, it's someone else's research. I don't do gen programming so not sure I can adjust the response time, but I can look into it. With points 2 & 3 I agree. When I get some free time I will work on an update.
Posted on March 29 2018 by Razzkazz |
Report Issue
Hi
I modified the feeling of the VCAness knob by changing the Exponent value in live.dial inspector from the original value of 1.0
to a value of 0,2
this give excellent result .
I modified the feeling of the VCAness knob by changing the Exponent value in live.dial inspector from the original value of 1.0
to a value of 0,2
this give excellent result .
Posted on March 29 2018 by zip |
Report Issue
OK, i'll check it out.
Posted on March 30 2018 by Razzkazz |
Report Issue
Love this.
Love the FM audio samples. Could you please tell me what FM you used to create these sounds? Just Operator? or which Ableton instrument?
Are the FM sounds modulated in any way pre LPG?
Would pay for this FM + LPG Ableton rack. :-)
Love the FM audio samples. Could you please tell me what FM you used to create these sounds? Just Operator? or which Ableton instrument?
Are the FM sounds modulated in any way pre LPG?
Would pay for this FM + LPG Ableton rack. :-)
Posted on May 24 2020 by lukebrown |
Report Issue
version 1.1 available
Posted on June 03 2020 by Razzkazz |
Report Issue
This is a great sounding device but it uses a lot of CPU on my old MacBook. Would really be great if it could be less processor intensive.
Posted on November 15 2020 by Drewskee |
Report Issue
