Device Details


Name | Version: Monomod for APC40 .93
Author: amounra
Device Type: MIDI Effect
Description: ///This device is now contained in it, as it adds a great deal of functionality, and corrects many bugs///

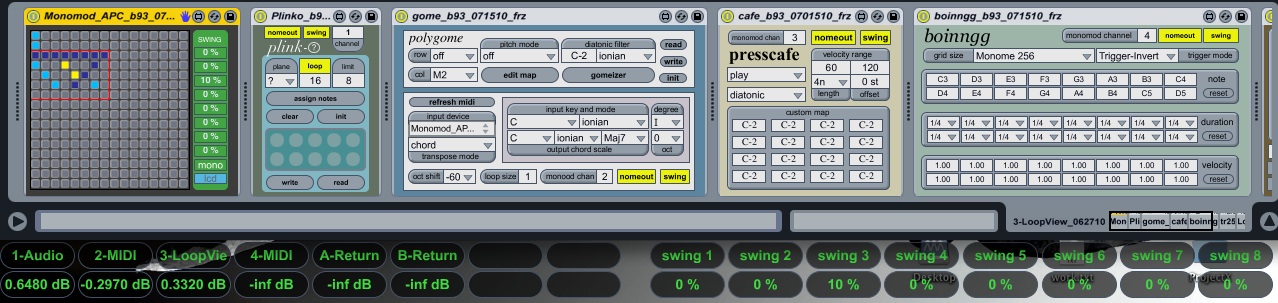

Monome emulation (8x5 or 8x8, monochrome or multicolor).

HUD for use with Device Control and Faders.

Requires a modified version of Hanz Petrov's APC40plus22 script, which you can download here:

Put that in your MIDI Remote Scripts folder. It adds a lot of extra functionality, even before my additions. Details here:

I've made many new additions:

Master Select toggles between Monome mode / Session mode. Shift Master Select switches between partial (5x8)/full (8x8) grid mode. In partial mode, stop buttons select plugin (p1 through p8, see below). Scene buttons 1-4 select Modes 1-4; Shift Scene 1-4 change the timing. Shift with the top row of grid buttons selects the Monomod channel to control. Shift with the second row of grid buttons changes the selected patches Nomeout channel. Arrow buttons move around the grid. Shift with arrow buttons will bank.

If you label a plugin with the prefix "p1" through "p8", it will be selectable via the clipstop buttons in Grid Mode (5x8). I need to add a "refresh" button for this functionality, in the meantime, just create a new track and delete it, and the script should update.

Track control knobs differ slightly from normal implementation: instead of Pan/Send1/Send2/Send3, they are Sends 1-4.

Shift with "Stop all Clips" button will zero the selected send for ALL TRACKS.

Mute and Record are reversed: the orientation just didn't make sense to me, and this way you can still use mute when in full Grid mode.

I've retained all of Hanz's other additions, although I will probably change some things in future versions. Make sure to check out the documentation with the MIDI Remote Script.

There will be a bunch of nagging little bugs for a while, I haven't had a chance to test this much. No show stoppers, though. I think everything is pretty stable. This will probably be the only version of Monomod exclusively for APC, as the next version of Monomod should contain scripts for all the devices (iPad, Launchpad, APC40) and support multiple devices at once.

You might want to check out the other Monomod patches to get a better idea of how all this works, I don't have time right now to write proper instructions.

Please leave feedback/bug reports either here or there:


Live Version Used: 8.1.3
Max Version Used:
Date Added: Jul 16 2010 05:51:38
Date Last Updated: Sep 07 2010 00:57:08
Downloads: 1969
License: AttributionNonCommercial
Average Rating (1)

Log in to rate this device



Device File: Monomod_APC_b93_071510_frz.amxd


Hello, will it work with apc20 as well?
