Device Details
Overview
| Name | Version: | DSP Oscilloscope 1.2 |
| Author: | PatrickDSP |
| Device Type: | Audio Effect |

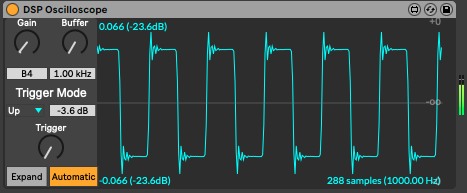

| Description: | Here's a simple oscilloscope with gain controls, buffer controls, trigger modes as well as a break out window with different sizings so you can see the waves while working away on other sections. Works great for viewing wavetables or any kind of audio/waveforms. The oscilloscope sums both left and right signals for the display readout but does not alter the sound in anyway. ***WARNING! DO NOT use this to measure any signal that your audio interface cannot handle. Check with the manufacturer first.*** **UPDATE** Added Automatic mode. Decibel readout. Fundamental Hz & MIDI note read out as well. **UPDATE** Fixed the auto Hz & MIDI detection readout. |
Details
| Live Version Used: | 11 |
| Max Version Used: | 8 |
| Date Added: | Mar 13 2014 23:01:49 |
| Date Last Updated: | Feb 18 2022 11:00:55 |
| Downloads: | 3456 |
| ⓘ License: | AttributionNonCommercialNoDerivatives |
Average Rating
(3) Log in to rate this device |
5 |
Files
| Device File: | DSP Oscilloscope.amxd |
Comments
Login to comment on this device.
Browse the full library
The fundamental and note readout is a really nice touch!
Thanks!!
