Device Details


Overview

Name | Version: zb.zXDistortion 2.0
Author: ZlatkoBaracskai
Device Type: Audio Effect

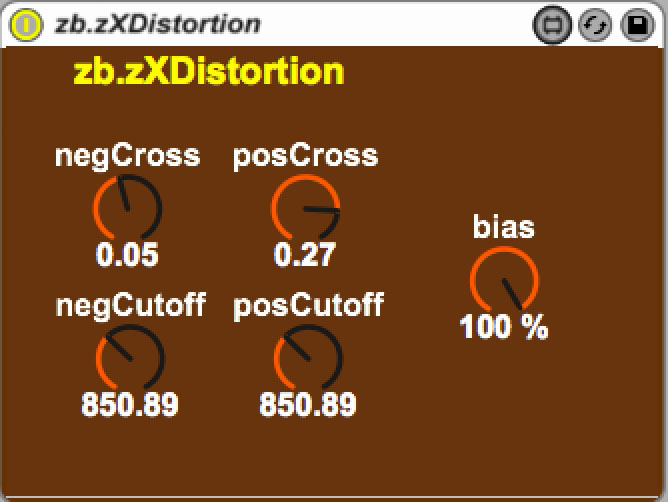

Description: zb.zXDistortion is a zero-crossing distortion plugin. It zeros all the samples between the lower threshold and the higher threshold. This type of distortion is special because it does not depend on the input gain i.e. it also distorts very soft sounds. At extreme settings it induces gating.
The negCross parameter sets the value below which negative portions of the signal are distorted.
The negCutoff parameter sets the cutoff frequency of the one-pole lowpass filter operating on the negative distorted portion of the signal.
The posCross parameter sets the value above which positive portions of the signal are distorted.
The posCutoff parameter sets the cutoff frequency of the one-pole lowpass filter operating on the positive distorted portion of the signal. The bias parameter offsets the signal such that at 100% setting with both filters off the signal is shifted by the threshold amount. The device performs 32x upsampling to minimise aliasing.

Details

Live Version Used: 9.0.6
Max Version Used: 6.1.5
Date Added: Aug 01 2011 09:30:43
Date Last Updated: Feb 11 2014 08:48:32
Downloads: 810
License: None
Average Rating

Log in to rate this device

-n/a-

Files

Device File: zb.zXDistortion.amxd
