Device Details

Overview

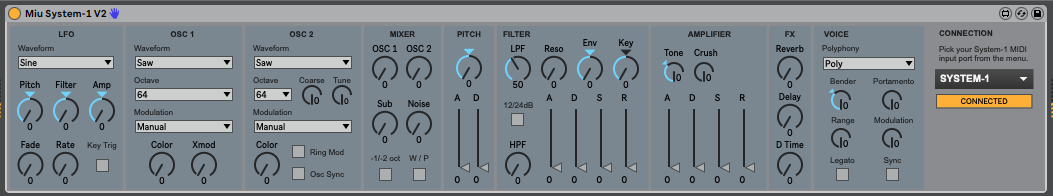

Name \| Version:	Miu Roland System-1 V1.20 Control Interface 2.0
Author:	miunau
Device Type:	MIDI Effect
Description:	This is a free controller that you can use to automate and control your Roland System-1 synthesizer. It includes all the features from Roland’s updates up to V1.20. Features: - All features from V1.20 have been implemented; - 6 new waveforms for oscillators - The ability to change the bender range - Coarse tuning for OSC2 - Properly named controls for automation Usage: 1. Drop the controller on an empty MIDI track. 2. Drop an External Instrument device after it. Find it under Instruments > External Instrument. 3. Pick your System-1 as the MIDI out from the External Instrument to send MIDI data to System-1. Knob changes work without setting System-1 as the MIDI input- the plugin does not require you to have the System-1 as the MIDI input on your channel to capture knob changes from the System-1. All MIDI CC channels have been wired up for you.

Details

Live Version Used:	10.0.6
Max Version Used:	8
Date Added:	Sep 24 2018 01:10:36
Date Last Updated:	Apr 27 2019 22:29:53
Downloads:	382
ⓘ License:	Attribution
Average Rating Log in to rate this device	-n/a-

Files

Device File:	Miu System-1 V2.amxd

Comments

Thanks for this device.

I'm having trouble getting it to recognize a few controls when using the System-1 hardware:

-Any of the Osc1 and Osc2 waveform types selected from the second variation (the new waveforms)

-Polyphony selection

Those seem to work in the opposite direction. That is, I can change those parameters in Ableton via mouse or Push and the System-1 hardware responds. It's just when using the System-1 hardware that the device doesn't respond.

Posted on December 11 2018 by Wisdom | Report Issue

Hello @Wisdom, thank you for the note! I've updated the device. It now also captures knob changes without setting the System-1 as the track MIDI input, just pick the S1 input channel in the plugin itself.

Posted on April 27 2019 by miunau | Report Issue

Also about seeing the extra waveforms in the plugin while changing on the device, sometimes it requires a few sweeps left to right across the waveforms to register that you're pushing down on the legato button. I'm investigating if I can get rid of that!
