Device Details

Device Overview

Name/Version: Polyphonic Pitcher 1.0.4
Author: stev
Description: This hybrid midi instrument/audio effect can either be thought of as a polyphonic midi harmonizer or a keyboard style sampler with continuous live audio input.

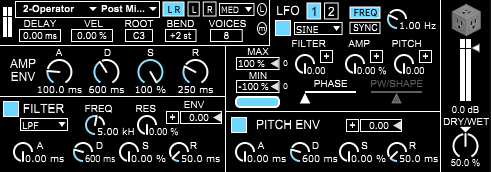

Set the audio inputs at the top left of the device and feed it a stream of audio.

Use midi to polyphonically pitch shift that audio and alter it with basic sampling techniques. You get amplitude, pitch, and filter envelopes as well as 2 LFOs (sine/pulse/and a morphing wave that goes from saw down to triangle to saw down) that can modulate the filter, amplitude, and pitch and can be set to either sync or free running mode.

The device has built in info text for more explanation.

Now available in the Delays and Harmonizers pack.

***Live 10 required***


Shout out to Dstream's Multi Mangler for inspiration!

Full feature list

-Input Selector
-Mono Mode (less cpu)
-Multiple pitch-shift qualities. Can be modulated more quickly on low mode and has less artifacts on high mode.
-Input Delay
-Velocity Sensitivity
-Changeable Root note
-Variable pitch bend width
-2-16 Voices
-Latency compensations (midi and audio separate)

-Amplitude Envelope

-State Variable Filter (Low/High/Band/Notch)
-Bi-polar Filter envelope.

-Bi-Polar Pitch Envelope

2 LFOs that each have:
-Sine/Pulse/Morphing Triangle (saw down-triangle-saw up)
-Free Running or Sync mode
-Can be scaled (-100%-100)
-Separately control the filter, amplitude and pitch modulation with individual polarities.
-Control of phase.
-Control of Pulse width and the shape of the morphing triangle.


Now available in the Delays and Harmonizers Pack.

Device Details

Tags sampler, lfo, effect, other, push
Live Version Used: 10.0.1
Max Version Used: 8.0
Date Added: Mar 24 2018 05:13:12
Date Last Updated: Dec 16 2021 02:55:51
Device Type: instrument_device
Download URL (report link)
License (more info): Commercial


How about a video demo?

@oidar Here's a rough demo! I'm going to try to make a more extensive one soon! This is my first demo video so bear with the cheesy music :)
