Device Details

Overview

Name \| Version:	ONE SLIDER CAN 1.0
Author:	bilaldeledakrew
Device Type:	MIDI Effect

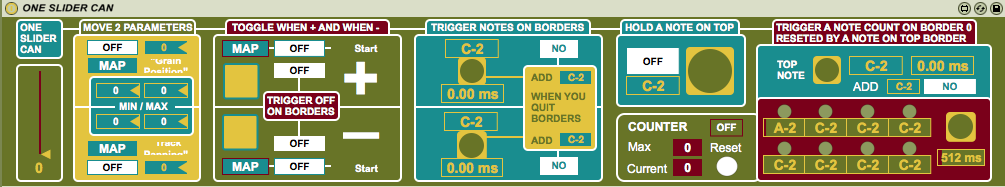

Description:	One Slider Can is a didactic device which shows 5 ways to use a slider/knob. TUTORIAL First midi map a slider to ONE SLIDER CAN MOVE 2 PARAMETERS Map 2 parameters by clicking MAP and then the choosen parameter Choose MIN/MAX values TOGGLE WHEN +/- Map 2 parameters, they will toggle On or Off when you move your slider up or down Active Trigger Off On Borders if you want your parameters to be off when your slider is totally up or totally down TRIGGERS NOTES ON BORDERS Choose a note and a trigger time for triggering them each time you reach the top or bottom border time 0.00s = OFF You can optionally triggers a note with the same time when you quit the border. This note is the one just before the choosen one. (i will update this one day to be able to choose it too) HOLD A NOTE ON TOP Choose a note, you can trigger and hold it when you stay on top border. The note is stopped when you quit the top border. TRIGGER A NOTE COUNT Choose notes and times for your triggers time 0.00s = OFF Active the counter, set a Max value Now a note count (8 maximum) is triggered when you hit the bottom border, this count is reseted when you hit the top border You can also reset it manually Try it with Kicks and Hi-Hats on bottom and a snare on top ! Enjoy and share !

Details

Live Version Used:	9.0.2
Max Version Used:	6.1.1
Date Added:	Feb 04 2014 09:36:03
Date Last Updated:	Feb 04 2014 12:32:38
Downloads:	542
ⓘ License:	None
Average Rating Log in to rate this device	-n/a-

Files

Device File:	BILAL ONE SLIDER CAN.amxd

Comments

It doesn't seem to be mapping correctly. It shows the name of what's mapped, but the actual knob i mapped isn't greyed out an doesn't move when i move the one slider

Posted on February 07 2014 by jeffromusic | Report Issue

Did you active the ON (on my plug) for the effect you've mapped ? If the name appear, it should work correctly. It's normal that the parameter isn't greyed because i use a mapping section witch allow multiple mappings (the parameter isn't locked to only one max effect) and the original knob of the parameter can still be moved by itself

Posted on February 08 2014 by bilaldeledakrew | Report Issue

or did you correctly set MIN/MAX ?
