Device Details


Name | Version: DMaX - Channel Control 0.2
Author: prodavid
Device Type: Audio Effect

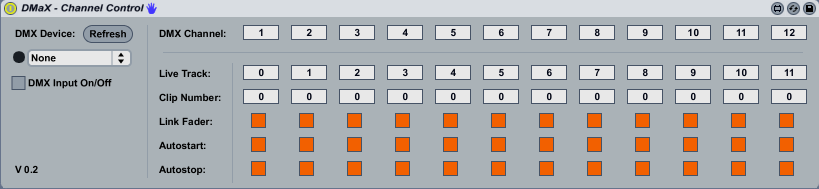

Description: This device is designed to allow DMX control of Ableton channel levels and clips. You can link the value of a DMX channel to the value of an Ableton channel fader, and also set a clip to automatically start and stop when the value of a DMX channel rises above and below 0.

The point of this is to allow audio to cued and controlled from a lighting board. In a theatrical setting, this would allow perfect synchronisation of lighting and sound with only one show operator.

WARNING: THIS MODULE REQUIRES THE DMXUSBPRO MAX OBJECT AND AN ENTTEC DMX USB PRO DEVICE TO FUNCTION. I've also noticed that this module only seems to work with version 1.3.5 of dmxusbpro. Version 1.4 fails to register any DMX input.

For more information see my webpage,


Live Version Used: 8.1
Max Version Used:
Date Added: Feb 11 2010 20:07:07
Date Last Updated: Feb 11 2010 20:07:48
Downloads: 892
License: AttributionNonCommercialShareAlike
Average Rating

Log in to rate this device



Device File: DMaX - Channel Control.amxd
