Name/Version: MidiShaperExpCtrl 1.0
Author: asylumsp
Description: Using the Expression Control patch as a template, I have created a helper MIDI patch for using Cableguys MIDI Shaper plugin.

Using this plugin is similar to the structure explained by Cableguys whereas you need 2 MIDI tracks to use their plugin. Using this M4L device eliminates the need for using IAC Midi which was a pain to use the MIDI learn for mapping controller channels.

To use MIDI shaper to control say the EQ Eight, this is how you would set it up:

1) create a midi track that has your clips or midi data. On this track instantiate MIDI Shaper. All midi that drives whatever you want to control with MIDI shaper will come from this track. This includes note data and controller data. Basically, it will all get merged by the MIDI shaper on this track. You have to use the VST version for all this to work.

2) On a second track, create your virtual instrument and and effects. Also, create a copy of MidiShaperExpCtrl. On this track, set the midi input from the other track, and the source to be the midishaper. set the track to IN.

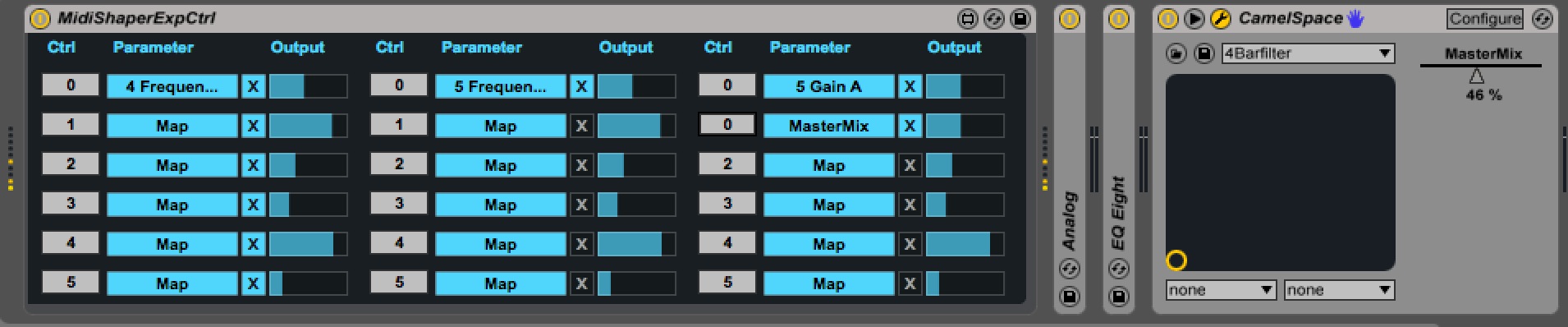

Now play midi from the first track and make changes in the midi shaper. You'll need to set the output matrix in midi shaper. In the MidiShaperExpCtrl, click on 'Map' and select a parameter. For any parameters in a 3rd party VST/AU, remember to map them into ableton. In the picture included, you can see that I mapped MasterMix from CamelSpace so that column3 param 0 is driving it from CC#0.


Device Details

Downloads: 664
Tags utility
Live Version Used: 9.0.1
Max Version Used: 6.1
Date Added: Mar 21 2013 02:32:26
Date Last Updated: Mar 21 2013 04:52:19
Average Rating -n/a-
Rate this device: (must be logged in to rate devices login)
Device Type: midi_device
URL (optional): http://asylumstudioproductions.com
License (more info): None

Device Files

Device File: MidiShaperExpCtrl_3Param.amxd



Comments

It also occurs to me that this can be used as a CC mapper to map any CC coming into a track to control a parameter.

All I see are the boxes for the CC number, but not the boxes for mapping or for amount.
Please help, this is exactly what I'm looking for.

Broken here:
http://i.imgur.com/E7svslx.png
