Device Details
Device Overview
| Name/Version: | ESX8CV Instrument 1.0 |  |
| Author: | bhenry1790 | |

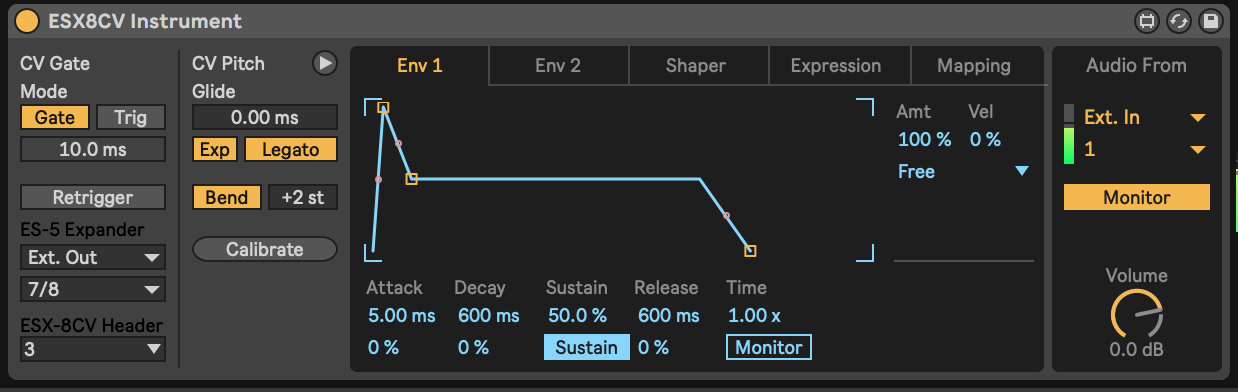

| Description: | Hack of the Ableton CV tools to work with Expert Sleepers ESX-8CV Expander Set Ext. Out to the stereo pair for your ES-5, then set the header to ESX-8CV ESX-8CV Outputs: 1 = 1v/Oct 2 = Gate 3 = Envelope 1 4 = Envelope 2 5 = MIDI Expression 1 6 = MIDI Expression 2 7 = MIDI Expression 3 8 = Shaper You'll need to add the es*encoder~ externals to Max for these to work. https://www.expert-sleepers.co.uk/downloads.html On a Mac the location for externals (windows will be similar): Users/Shared/Max 8/Library/ If using with an ES8/9 as an aggregate device turn off DRIFT CORRECTION |
Device Details
| Downloads: | 534 |
| Tags | utility |
| Live Version Used: | 10.0.1 |
| Max Version Used: | 7.3.5 |
| Date Added: | Jun 28 2020 12:03:05 |
| Date Last Updated: | Dec 19 2020 21:46:03 |
| Average Rating (1) | 5 |
| Rate this device: | (must be logged in to rate devices login) |
| Device Type: | instrument_device |
| URL (optional): | |
| License (more info): | None |
Device Files
| Device File: | ESX8CV Instrument.amxd |
Comments
| my bad ES 5 only puts out gates anyway... |
Posted on December 27 2020 by Trigonometrie (report) |
| Thanks bhenry1790 |
Posted on January 13 2021 by gravitymike (report) |
| Hi bhenry! First I wanna say thank you for all your great work! I have a question...... Could you maybe make a version if the ESX8CV Instrument that can choose what outputs are used? This way we could for example use just 4 outputs on one expander with pitch, gate, env 1 and env 2 and leave the other outputs for other things or to have 2 synths voices controlled from one expander. Would love to have a dropdown menu for each output. I almost never use all 8 for voice. This would save so much extra wiggling with extra channels and the track helper. all would be so much more organized. Think about it |
| Hi tekktribe! Unfortunately (to the best of my knowledge) the ES-Encoder needs to encode all 8 of the ESCX8CV outputs simultaneously, so it's not possible to share the outputs across multiple devices natively. However, there is a workaround! You can use the standard CV-Instrument and send the Audio Outs to the ESX8CV Track Helper. This method will allow you to use any combination of devices on the outputs. Let me know if you have any troubles and I can make a step-by-step video tutorial |
Posted on April 13 2021 by bhenry1790 (report) |
Login to comment on this device.
[ browse device library ]
Great device!
Little bug report:
Unfortunately it is not possible to select the ES5 itself so set the expander output to 1...
