Device Details


Name | Version: Treasure Map BETA 0.1
Author: zimo3000
Device Type: MIDI Effect
Description: Treasure Map lets you MIDI map functions that are natively non-mappable or hidden in Ableton. It makes MIDI controllers more useful and a little closer to what you'd be able to do with a Push.

Mappable functions
— — — — — — — — — — —
- Navigation: previous track, next track, previous scene, next scene, unarm all tracks
- Selected track control: arm selected track, selected track on/off, solo selected track
- Device control: select previous device, select next device, selected device on/off
- Clip and global controls: fire slot, quantize selected clip, delete selected clip, stop selected clip, duplicate selected clip to next empty slot, record in selected slot for 1/2/4/8 bars, undo, switch between clip/device view

How to use it:
— — — — — — — — — — —
1. Create an empty midi track and add Treasure Map on it as a MIDI device
2. Set the Monitor of the midi track to "In". It's needed so that Treasure Map can listen to the MIDI notes and CC messages no matter which track is armed

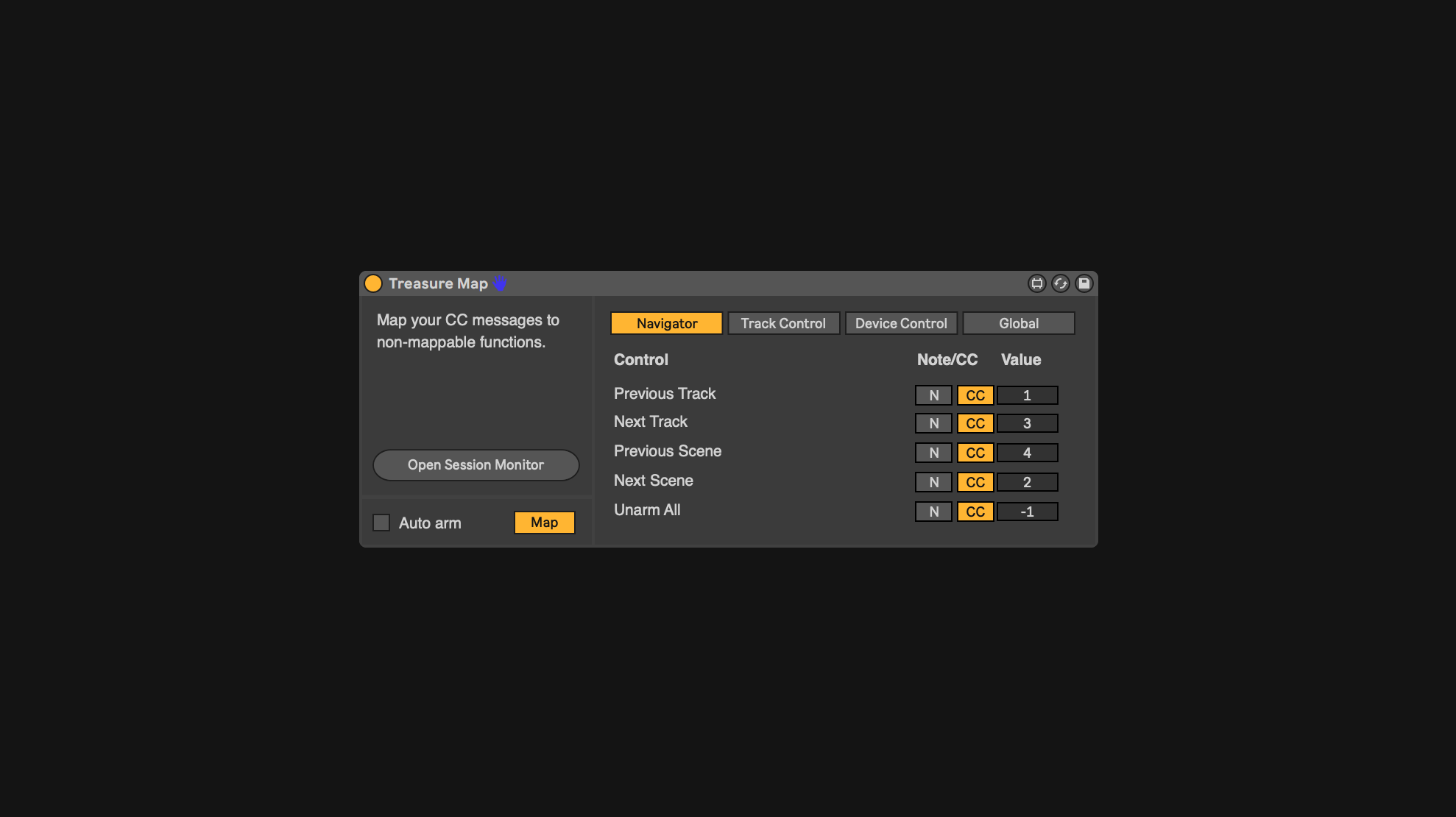

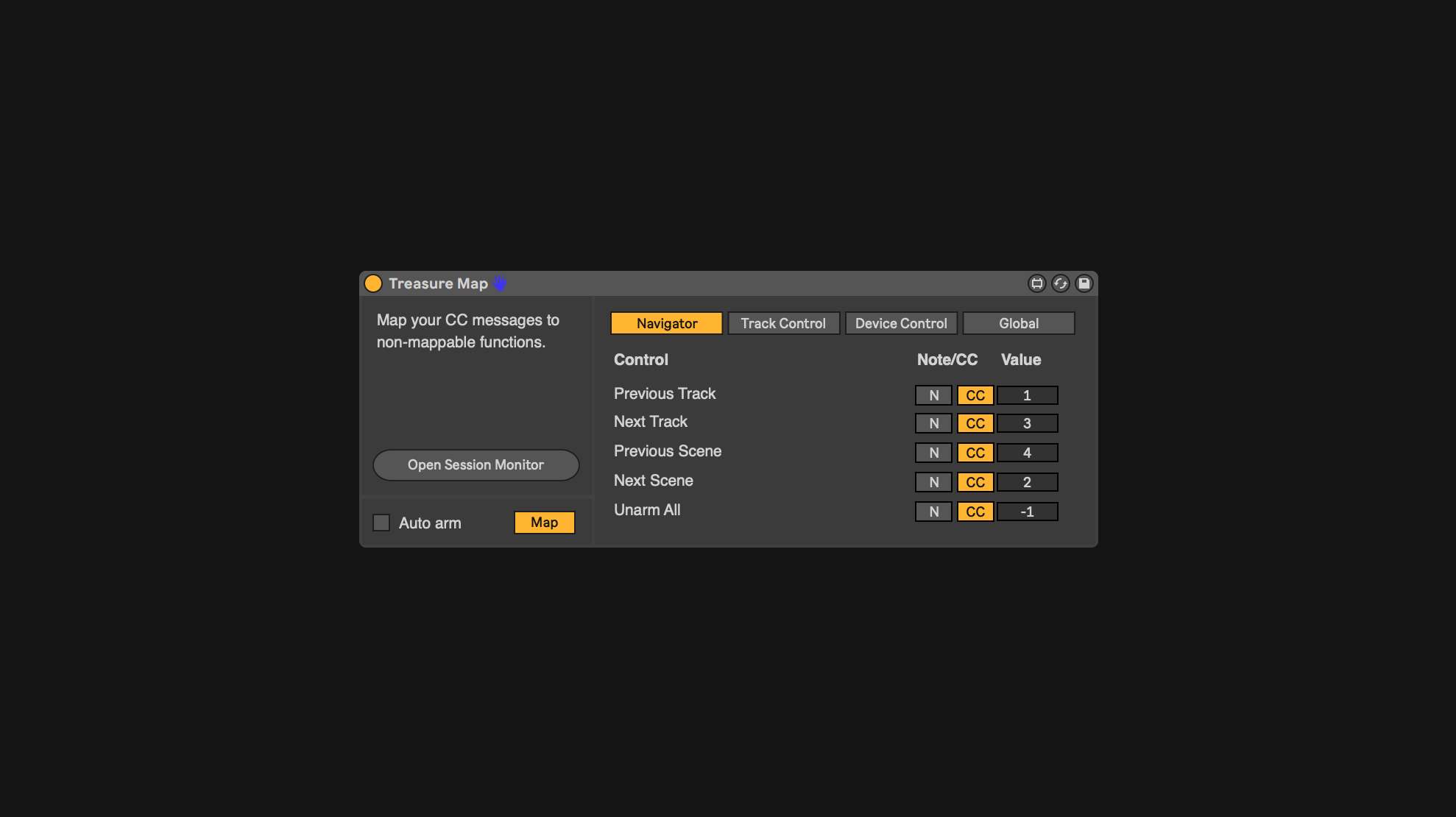

3. Click on the "Map" button to open the panel where you can assign MIDI notes or CC messages to certain functions in Ableton. (Yeah you need to enter midi values manually… You can use M4L MIDI Monitor device to... um... monitor MIDI.)

This device does NOT mess up your undo history by filling it up with “Undo change” entries ;)

More info here:


Live Version Used: 10.0.1
Max Version Used: 7.3.5
Date Added: Mar 10 2020 11:31:26
Date Last Updated: May 01 2023 08:03:49
Downloads: 0

report link
License: None
Average Rating

Log in to rate this device



Good day! Thanks for sharing! Could you advise please, is it possible to map the cue/solo button of the master track with this device & how? Thank's in advance. Have a nice day!
nice. looking forward to try it.
Hello, thank you for the device!
i m wondering:
- why don't you make the functions mappable? like the classical way of having buttons/knobs on the m4l surface which are mappable via Ctrl+M
- will you some day include the Fader and Send section? That would be awesome. Because i m using a Touch OSC software (OSC/Pilot) and could then control and midi-assign the "selected track" Fader and 3 Send-Knobs, Mute, Record-Arm, Solo.
Thank you , have a nice day :)
