Device Details

Device Overview

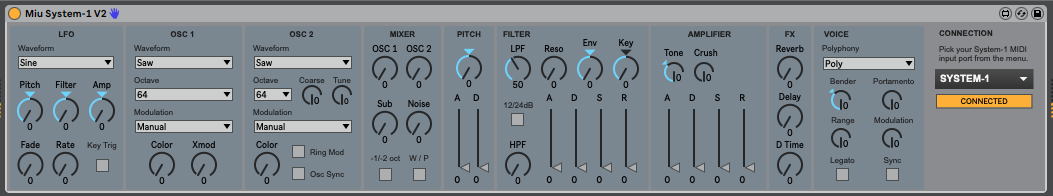

Name/Version: Miu Roland System-1 V1.20 Control Interface 2.0
Author: miunau
Description: This is a free controller that you can use to automate and control your Roland System-1 synthesizer. It includes all the features from Roland’s updates up to V1.20.

Features:
- All features from V1.20 have been implemented;
- 6 new waveforms for oscillators
- The ability to change the bender range
- Coarse tuning for OSC2
- Properly named controls for automation

Usage:
1. Drop the controller on an empty MIDI track.
2. Drop an External Instrument device after it. Find it under Instruments > External Instrument.
3. Pick your System-1 as the MIDI out from the External Instrument to send MIDI data to System-1.

Knob changes work without setting System-1 as the MIDI input- the plugin does not require you to have the System-1 as the MIDI input on your channel to capture knob changes from the System-1. All MIDI CC channels have been wired up for you.


Device Details

Downloads: 172
Tags hardware
Live Version Used: 10.0.6
Max Version Used: 8
Date Added: Sep 24 2018 01:10:36
Date Last Updated: Apr 27 2019 22:29:53
Average Rating -n/a-
Rate this device: (must be logged in to rate devices login)
Device Type: midi_device
URL (optional): http://www.miunau.com
License (more info): Attribution

Device Files

Device File: Miu System-1 V2.amxd



Comments

Thanks for this device.

I'm having trouble getting it to recognize a few controls when using the System-1 hardware:

-Any of the Osc1 and Osc2 waveform types selected from the second variation (the new waveforms)

-Polyphony selection

Those seem to work in the opposite direction. That is, I can change those parameters in Ableton via mouse or Push and the System-1 hardware responds. It's just when using the System-1 hardware that the device doesn't respond.

Hello @Wisdom, thank you for the note! I've updated the device. It now also captures knob changes without setting the System-1 as the track MIDI input, just pick the S1 input channel in the plugin itself.

Also about seeing the extra waveforms in the plugin while changing on the device, sometimes it requires a few sweeps left to right across the waveforms to register that you're pushing down on the legato button. I'm investigating if I can get rid of that!
