Device Details
Device Overview
| Name/Version: | Yamaha MU10 editor 1.0 |  |
| Author: | Pip | |

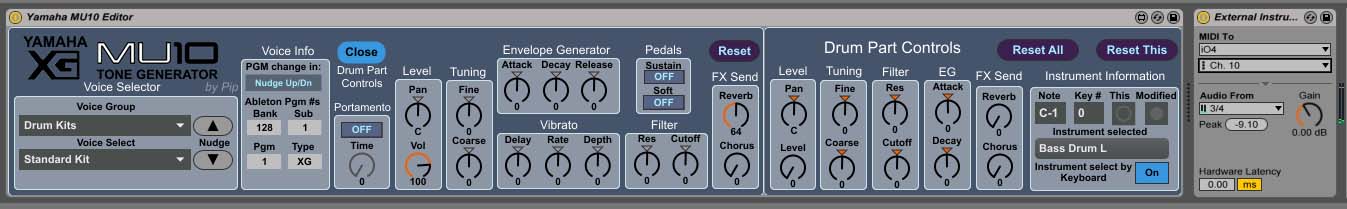

| Description: | Editor for the Yamaha MU10 XG tone generator. This was a little project I did as an experiment with my first foray into programming Max for live. The Yamaha MU10 is quite an old tone generator, but something I had kicking around at home. I couldn't find any editors for this device which work in Ableton, so I decided to build one myself. The editor is designed to work with multiple instances of itself in Ableton, so you can run multiple editors across different channels to control different sounds (mulititmbral) within the MU10. If you are doing this make sure each of your midi outputs are mapped to different MIDI channel feeding into the MU10. Best to use MIDI channel 10 for drum parts as this is the XG default. It will allow you to adjust each of the drums independently of each other. The editor is designed to work with the default boot up configurations of the MU10. I did this as a Ableton doesn't easily support sysex messages. In any case the main purpose of the editor was to get easy access to the various sound patches, which the editor will allow you to do. Use the external instrument device to send MIDI to the MU10, and if you are using multiple channels, only return the audio on one of them. If anyone finds it useful then let me know. I will then make time to right up some instructions. Additionally if you have any other XG tone modules in this range, such as the MU80 or MU90 then it is an easy job to edit the synth patch names in the selection menus. Again drop me a line if you need help for this. Enjoy. |
Device Details
| Downloads: | 404 |
| Tags | synth, utility, hardware |
| Live Version Used: | 9.6.2 |
| Max Version Used: | 7.2.4 |
| Date Added: | Dec 17 2017 20:59:59 |
| Date Last Updated: | Apr 05 2018 22:59:08 |
| Average Rating | -n/a- |
| Rate this device: | (must be logged in to rate devices login) |
| Device Type: | midi_device |
| URL (optional): | |
| License (more info): | None |
Device Files
| Device File: | Yamaha MU10 Editor.amxd |
Comments
| Thanks. |
Posted on May 30 2019 by pwdm (report) |
