Device Details

Device Overview

Name/Version: ATC1 control 0.1
Author: djjackrock

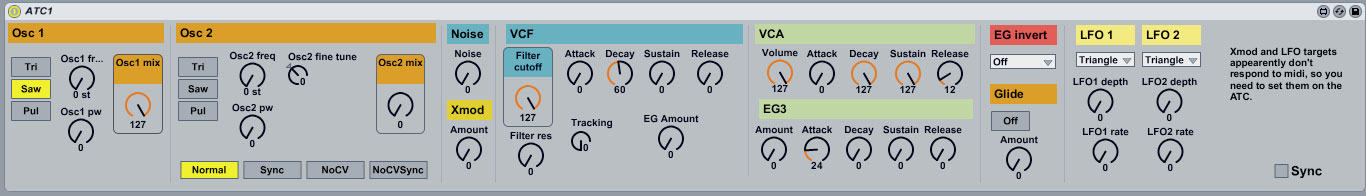

Description: A midi plugin to control most parameters on the Studio Electronics ATC-1.

I pretty much based this on delaneyparker's "FM JoMoX AiR Base 99 Control" (http://www.maxforlive.com/library/device.php?id=244).
All I did was remap the CC values to match the ATC-1 and change the layout.

I also found some extra CC's not mentioned in the manual in this thread on Gearslutz -> http://www.gearslutz.com/board/electronic-music-instruments-electronic-music-production/258061-studio-electronics-atc-1-editor.html

Unfortunately, not all of the ATC-1's parameters are accessible via MIDI.
For example, the target mappings for LFO's and Xmod need to be set on the device.

Have fun!

---
http://www.jackrock.dk
http://www.soundcloud.com/jack-rock/


Device Details

Downloads: 481
Tags utility, hardware
Live Version Used: 8.2.1
Max Version Used:
Date Added: Nov 13 2010 21:33:50
Date Last Updated: Not updated yet
Average Rating -n/a-
Rate this device: (must be logged in to rate devices login)
Device Type: midi_device
URL (optional):
License (more info): None

Device Files

Device File: ATC1.amxd



Comments

yes! thanks so much :D

PLEASE PLEASE PLEASE DO ONE FOR STUDIO ELECTRONIC RED EYE SE-1X :)

You can't access the oscillator mix levels from the front panel of the unit (which is a ball ache)! and you have to toggle the envelopes to control 3&4 on the front panel (also annoying and you can't see the setting)

So a little mixer section for the 5 mix levels would be amazing!
and 4 envelopes adsr with graphic would also be amazing!

Here are the midi controller numbers :)

54 Oscillator 1 frequency
55 Oscillator 1 triangle waveform on/off
56 Oscillator 1 sawtooth waveform on/off
57 Oscillator 1 square waveform on/off
58 Oscillator 1 pulse width
59 Oscillator 2 frequency
60 Oscillator 2 triangle waveform on/off
61 Oscillator 2 sawtooth waveform on/off
62 Oscillator 2 square waveform on/off
63 Oscillator 2 pulse width
70 Oscillator 3 frequency
71 Oscillator 3 triangle waveform on/off
72 Oscillator 3 sawtooth waveform on/off
73 Oscillator 3 square waveform on/off
74 Oscillator 3 pulse width
80 LFO 1 rate
81 LFO 1 depth
82 LFO 2 rate
83 LFO 2 depth
85 LFO 3 rate
86 LFO 3 depth
87 Oscillator 1 mix level
88 Oscillator 2 mix level
89 Oscillator 3 mix level
90 Noise mix level
91 Ring mod mix level
92 VCF frequency
93 VCF resonance
94 VCF tracking
95 Envelope 1 amount
102 Envelope 1 attack
103 Envelope 1 decay
104 Envelope 1 sustain
105 Envelope 1 release
106 Envelope 2 attack
107 Envelope 2 decay
108 Envelope 2 sustain
109 Envelope 2 release
110 Envelope 3 attack
111 Envelope 3 decay
112 Envelope 3 sustain
113 Envelope 3 release
114 Envelope 3 amount
115 Envelope 4 attack
116 Envelope 4 decay
117 Envelope 4 sustain
118 Envelope 4 release
119 Envelope 4 amount
