Device Details
Overview
| Name | Version: | Simple RMS Meter 1.01 |
| Author: | synnack |
| Device Type: | Audio Effect |

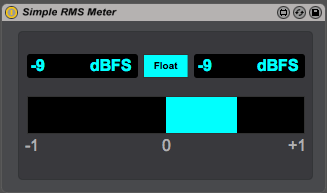

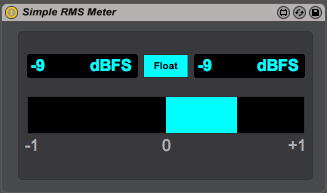

| Description: | A simple RMS / Correlation Meter based off of "RMS Correlation Meter" by Hz37 found here: http://www.maxforlive.com/library/device/980/rms-correlation-meters Unlike the original device, this does not use gen~ and hence does not require Max 6. Though I create it using Live 9 and Max 6.1 beta it should work fine in older versions. It doesn't do much... The top two numbers show you the average level of the current single (versus the peak level Live shows you). Below that is a standard Correlation Meter which can be described this way: (*) A +1 correlation value indicates that the left and right channels correlate 100%. In other words, the left and right signals are in phase and are the same shape. (the more +1, the more Mono...) (*) Correlation values between +1 and 0 indicate that the stereo signal is mono compatible. (*) The middle position indicates the highest allowable amount of left/right divergence, which is often audible as an extremely wide stereo effect. (*) When the Correlation Meter moves to the left of the center position, out-of-phase material is present. This will lead to phase cancellations if the stereo signal is combined into a mono signal. RMS meters are useful when mastering to look at the relative average levels between tracks (for example). Correlation meters are useful when mastering to identify phase cancellation issues and mono compatibility. As an example, if you were mastering for vinyl and were only listening to the bass frequencies in your track and saw the correlation meter below 0, you know the bass is too stereo for vinyl... Updated 1.01 - 11/28/2012 - Now the floating window is visible no matter what you click in Live. |
Details
| Live Version Used: | 9 |
| Max Version Used: | 6.1 |
| Date Added: | Nov 25 2012 05:35:29 |
| Date Last Updated: | Nov 29 2012 07:43:51 |
| Downloads: | 7411 |
| ⓘ License: | AttributionNonCommercialShareAlike |
Average Rating
Log in to rate this device |
-n/a- |
Files
| Device File: | Simple RMS Meter.amxd |
Comments
yes thank for this!!!
Posted on March 31 2013 by dric |
Report Issue
many thanks...
Posted on May 29 2014 by wallyton |
Report Issue
Thanks really! pm me your paypal I will make a donation.
Posted on June 21 2016 by salexmatei |
Report Issue
Who have try it?
Posted on July 13 2017 by AmandaLane |
Report Issue
Worked fine in Live 9, causes Live 10 to crash.
Posted on February 15 2018 by Razzkazz |
Report Issue
