Device Details

Device Overview

Name/Version: AUDhexSPATIAL 0.1
Author: synthesizerwriter

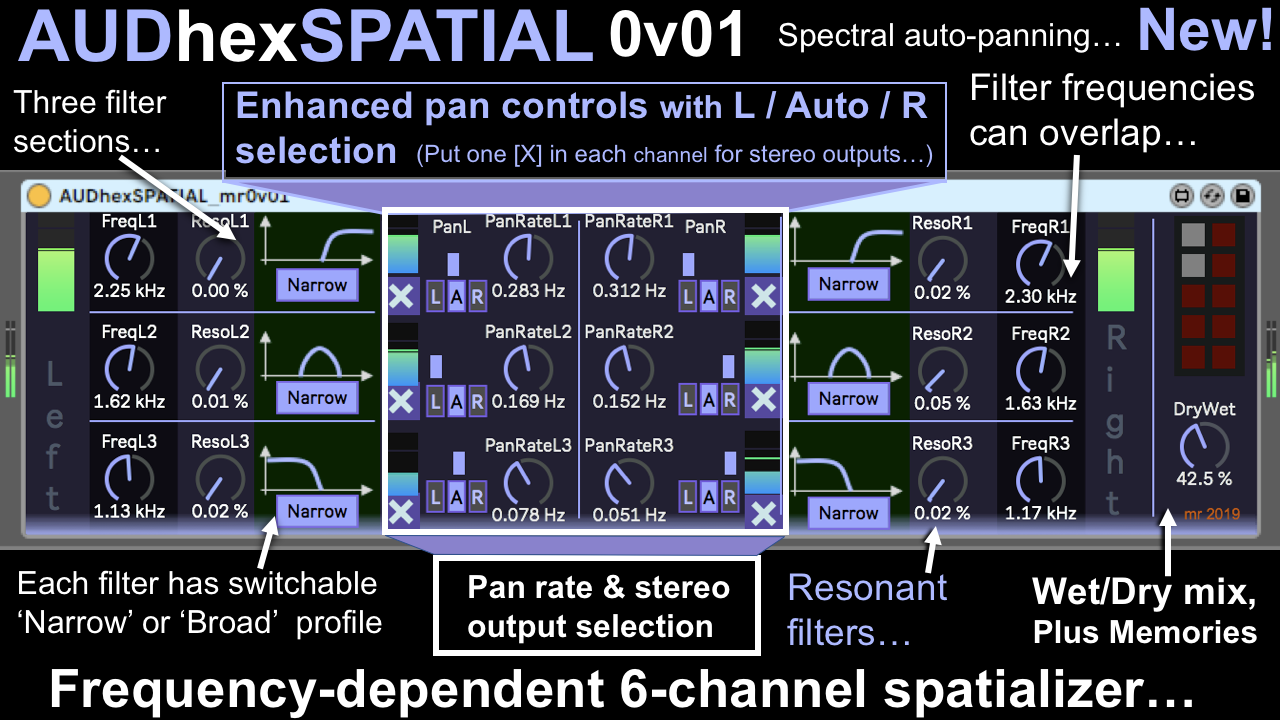

Description: AUDhexSPATIAL moves parts of sounds around in the stereo field - so it is a spectral spatializer.

The input audio is passed through three parallel filters, and then the outputs are auto-panned across the stereo image. The three filters can be used in several ways, but the most obvious way is to use them to split the audio into three separate bands: The high-pass filter outputs the high frequencies, the low-pass filter outputs the low frequencies, and the band-pass filter outputs the middle frequencies.

Each filter output can be panned to hard left or hard right, or can be Auto-panned - controlled by a three position switch: L/Auto/R. But the frequencies of each filter are independent, so there's nothing to stop you putting the high-pass filter below the low-pass, or the band-pass anywhere from low to high.

Putting AUDhexSPATIAL before an echo effect can produce interesting results, and if you put it in between two echo effects, then things can get very complex.

Enjoy!

There are more details on my blog:
http://blog.synthesizerwriter.com/2019/04/spectral-auto-panning-in-maxforlive-for.html


Device Details

Downloads: 143
Tags effect, other, beta
Live Version Used: 10.0.5
Max Version Used: 8.0.5
Date Added: Apr 15 2019 09:37:24
Date Last Updated: Apr 15 2019 21:59:42
Average Rating -n/a-
Rate this device: (must be logged in to rate devices login)
Device Type: audio_device
URL (optional): http://blog.synthesizerwriter.com/2019/04/spectral-auto-panning-in-maxforlive-for.html
License (more info): None

Device Files

Device File: AUDhexSPATIAL_mr0v01.amxd
