Device Details

Device Overview

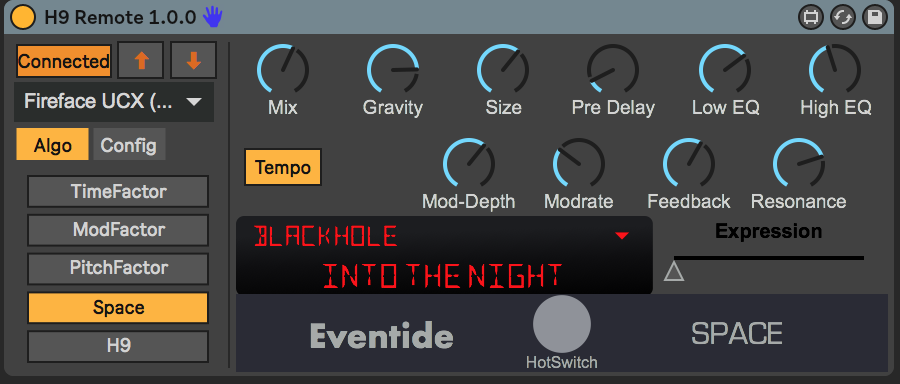

Name/Version: H9 Remote 1.1.2
Author: studiodc
Description: The H9 Remote is a Max For Live (M4L) Audio Effect plugin which can control an attached Eventide H9 stompbox in real time, supporting Ableton Live's automation and MIDI mapping and enabling saving the pedal preset state in a Live set or Live preset for future recall, even if the pedal has been completely reprogrammed in the meantime.

Note: This plugin processes no audio directly. It only controls an attached H9.

Basic features include:

* Fully supports all 5 modules (TimeFactor, ModFactor, PitchFactor, Space, and H9) and all 49 algorithms currently implemented in the H9 Max.
* Does not need the device to contain the required preset - can set any available algorithm and module directly.
* Operates entirely independently of the device's preset list - Does not overwrite any presets on the device.
* Supports Ableton M4L presets, so can store a completely separate set of presets than what is on the device.
* Saves the device configuration in the preset - no accidentally configuring the wrong H9 if you have multiple pedals.
* Receives and transmits knob, expression, and hotswitch changes from the pedal, for track automation recording, live performance, etc.
* Supports 14-bit precision MIDI CC values for primary knobs (currently using only 10 bits of total precision though).
* Supports Push and Live MIDI mapping to extend the controls for your H9 into the physical realm.
* Remembers which H9 each instance of the plugin was connected to, and restores the saved configuration from your Live set on open - ensuring your project re-opens with the right effects on the right pedal automatically, even if you didn't save the pedal configs as a preset.
* Allows you to send and automate expression controls even if you don't have an expression pedal connected.
* Supports multiple plugin instances connected to the same H9 using intelligent auto-enable/disable.
* Supports multiple H9s on separate instances, too.


Device Details

Tags effect, hardware
Live Version Used: 9.7.3
Max Version Used: 7.3.4
Date Added: Mar 26 2018 01:54:18
Date Last Updated: Apr 08 2018 22:50:55
Device Type: audio_device
Download URL (report link) https://github.com/malacalypse/h9-remote
License (more info): AttributionNonCommercialShareAlike


Comments

Great Device!
I`m on the fenct fo an H9. in the Github it is mentioned, that it turns a standart H9 into a max version (basically it lets you use all algos) is this correct?

best

Hi there!
I created a tutorial on how to control the H9 with a external midi controller (Arturia Beatstep) with the help of Ableton Live, H9_remote (a max4live device by Daniel Collins) and Control Surface Studio (for creating a custom remote script).
With the tutorial we?ll SEE always the 10 knob values of the current preset in the pedal, and SEND RELATIVE midi info in order to have smoothy changes in that values. Also we will have the ability to fast change to the desired presets with only pressing pads, and automatically send again relative midi info to the new values. Here is the link:

https://beyondthepiano.jlmirall.es/2019/08/14/eventide-h9-advanced-control-with-arturia-beatstep/
